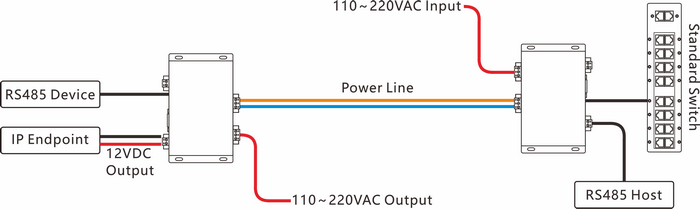

OT-PLC302C-RS4 is a high-speed power line Ethernet extender that can transmit power, Ethernet, and RS485 data signals over a 2-wire power line, with a transmission distance of up to 600m.

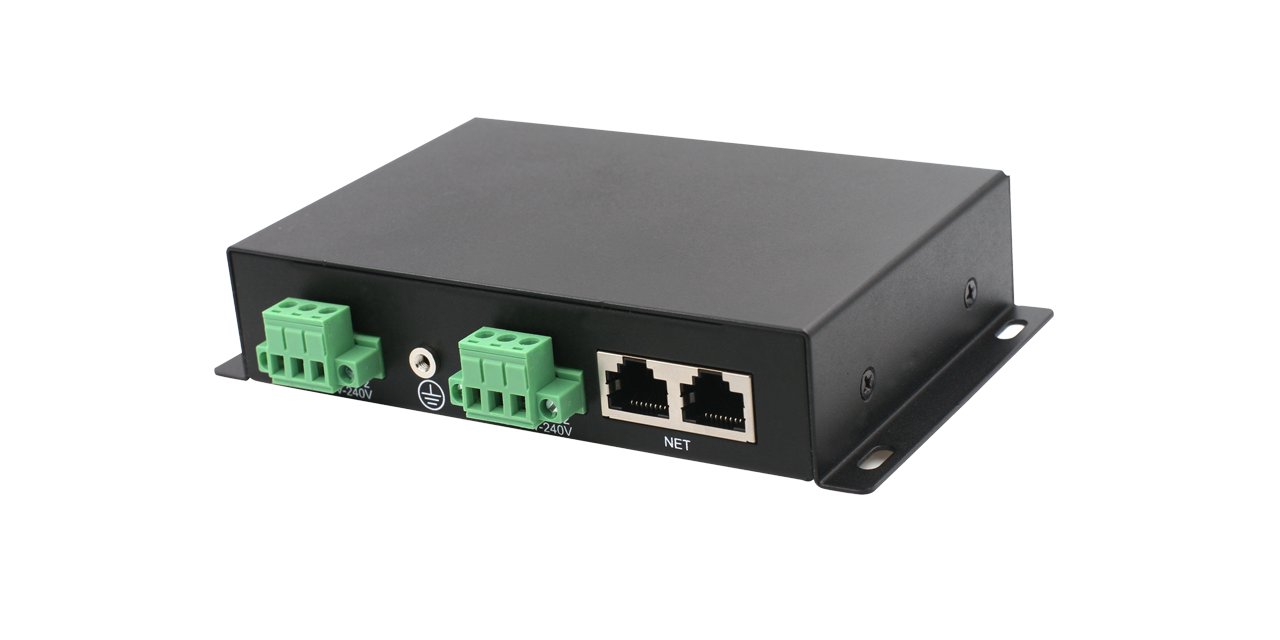

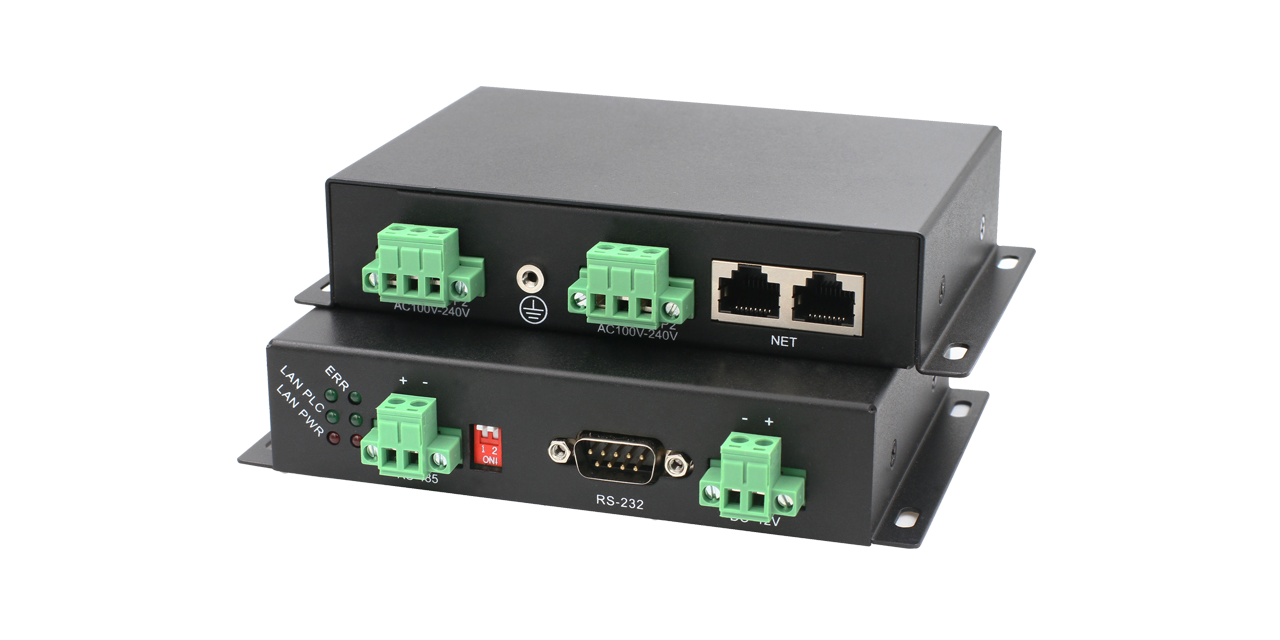

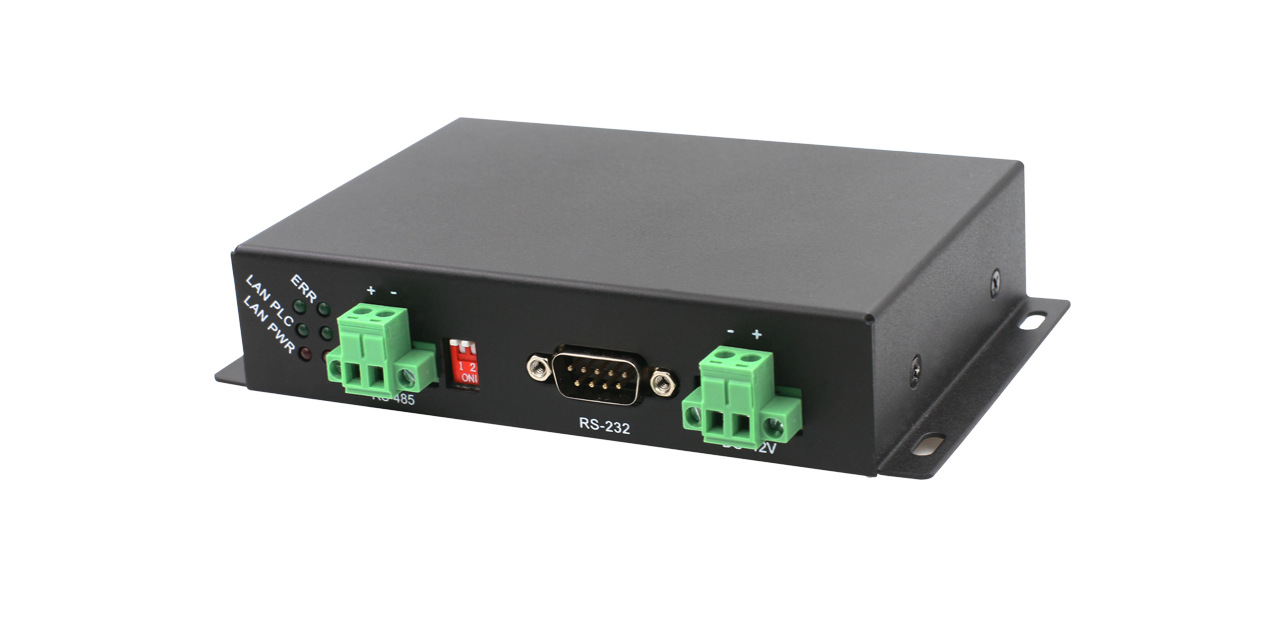

This device includes both the transmitter and receiver units and features a built-in noise reduction isolation transformer and isolation frequency crosstalk functionality. It transmits multiple signals over a single 2-wire cable, making it suitable for various medium- and short-distance Ethernet signal transmission applications.
Categoy | Description | |
Power | Available Voltage Range | 100～240VAC |
Power Consumption | ≤5W / PC | |
Power Output Transmitter Unit | 100～240VAC | |
220V Output Current | ＜10A | |
Transmission / Rate | Network Rate | Full duplex 100Mbps |
RS485 Port Rate | Dial the switch to adjust, support 9600、19200、57600、115200 | |
Physical Characteristic | Dimensions (L×W × H) | 89.5×152×30mm |
Material | Iron | |
Net Weight | 500g / PC | |
Operating Environment | Working Temperature | -20℃～60℃ |
Working Humidity | ＜95% (Non-condensation) | |
