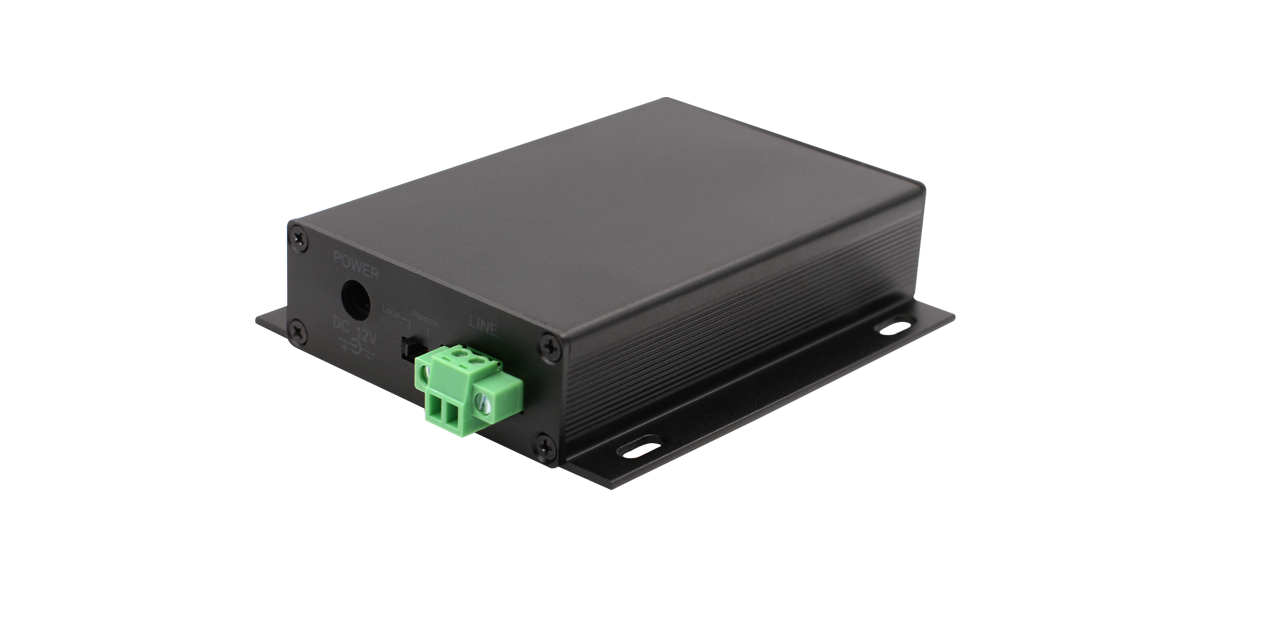

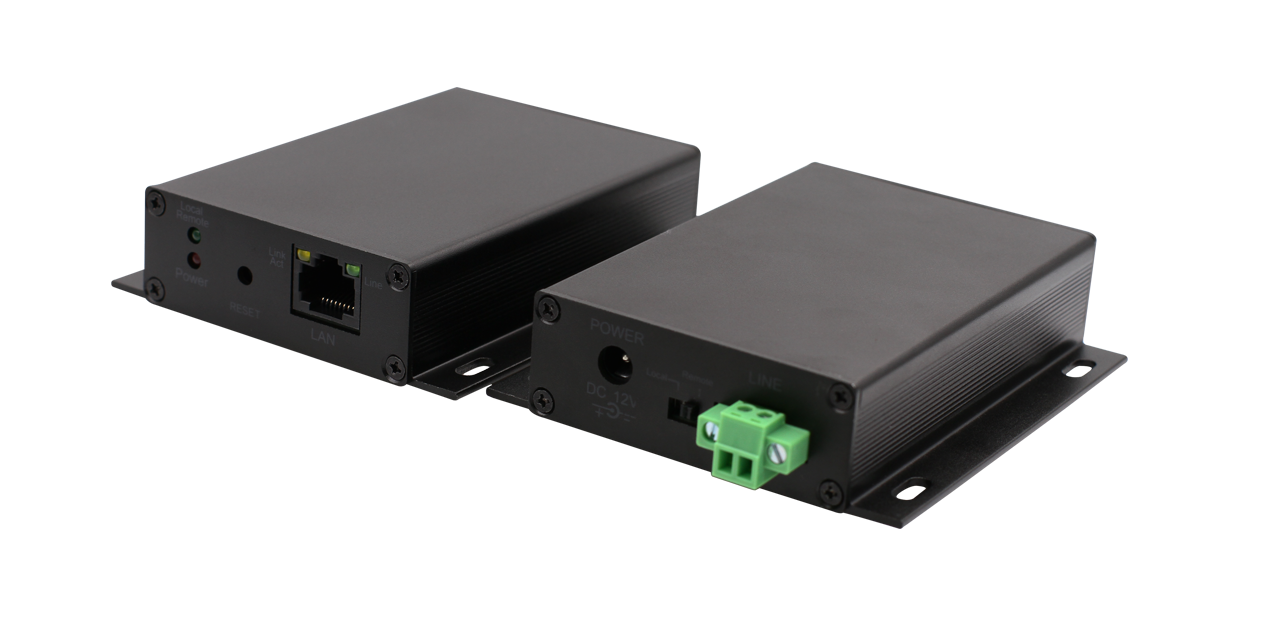

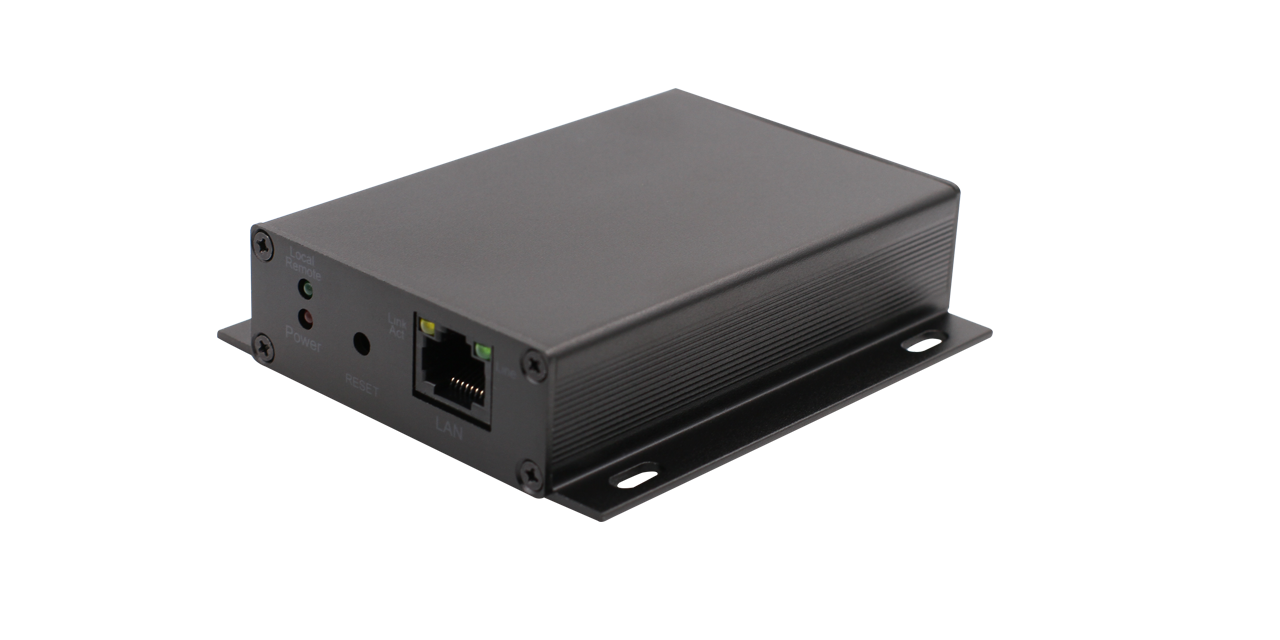

The OT-L-DSL is a compact, low-power VDSL2 Ethernet extender built for long-distance (up to 3000m) networking over existing 2-wire cabling, including standard telephone lines. Supporting 74 Mbps upstream and 74 Mbps downstream max bandwidth, it’s ideal for installations where space is limited, power efficiency is critical, and rewiring is impractical. Whether upgrading older ADSL systems or linking remote devices, it delivers stable, high-speed connectivity in a small, energy-conscious design.
Key Features
1.Compact form factor for easy installation in space-constrained environments
2.Low power consumption for energy efficiency and reduced operating costs
3.Extend Ethernet up to 3000 meters over 2-wire or telephone lines
4.74 Mbps upstream + 74 Mbps downstream for smooth video, data, and VoIP
5.VDSL2 modulation with QAM and DMT for strong, interference-resistant performance
6.FDM technology allows simultaneous voice and data transmission
7.Simple DIP switch for local/remote configuration—no software needed
8.Transparent transmission mode for full protocol compatibility
9.Multiple mounting options: desktop or wall-mount
10.Interfaces: Phoenix terminal (2P), RJ45 ports, DC 5mm power port
11.Standards compliant: IEEE802.3, IEEE802.3u, IEEE802.3ab
12.12VDC power input for easy integration with existing low-voltage power sources
Applications
1.Compact ADSL Upgrades — Modernize small-site telephone networks to IP with minimal space and power requirements
2.Remote Surveillance in Space-Limited Locations — Power-efficient Ethernet extension for compact security cabinets
3.VoIP & IPTV for Tight Installations — Deliver voice and video services in kiosks, small offices, and constrained environments
4.Branch & Small-Site Networking — Link remote points with a lightweight, low-power solution
5.Long-Distance Device Connections — Maintain stable links up to 3000m without large hardware or high energy draw
Compare with other models
OT-L-DSL-N: Wide voltage (12-24VDC) input type with higher bandwidth
Categories | Description | |
Power | Voltage Range | 12VDC±10％ |
Power Consumption | ≤3W/PC | |
Transmission Rate | Up Link74Mbps/Down Link 74Mbps | Max 148Mbps |
Protection | Transmission Channel Lightening | 4KV 10/700us, common mode lightning: Level 4 |
1KV 10/700us, differential mode lightning: Level 1 | ||
Executive Standard: IEC61000-4-5 | ||
Product Electrostatic Protection | 1b Contact Discharge: Level 2 | |
1b Air Discharge: Level 2 | ||
Executive Standard: IEC61000-4-2 | ||

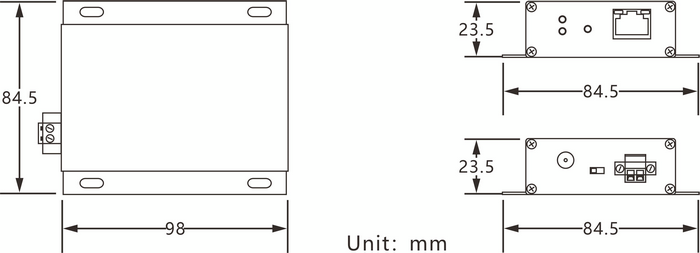

Physical Characteristic | Dimensions (L×W×H) | 97×84.5×23.5mm |
Material | Aluminum Alloy | |
Net Weight | 140g/PC | |
Operating Environment | Working Temperature | -40℃～60℃ |
Humidity | ＜95% (Non-condensation) | |
