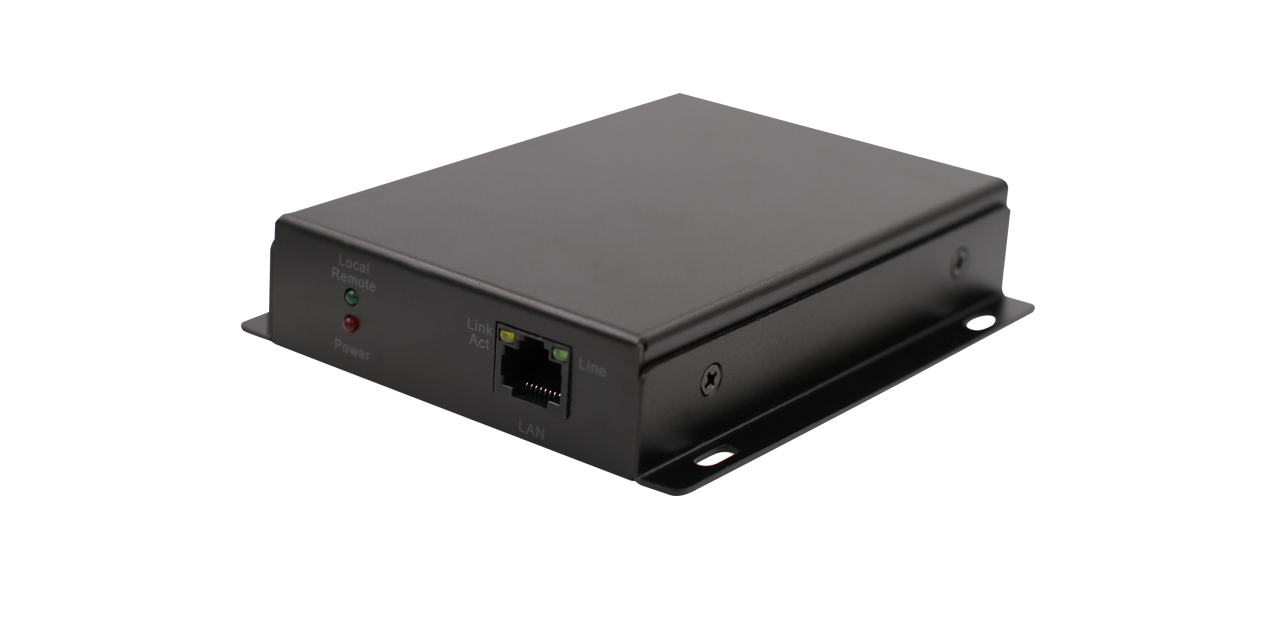

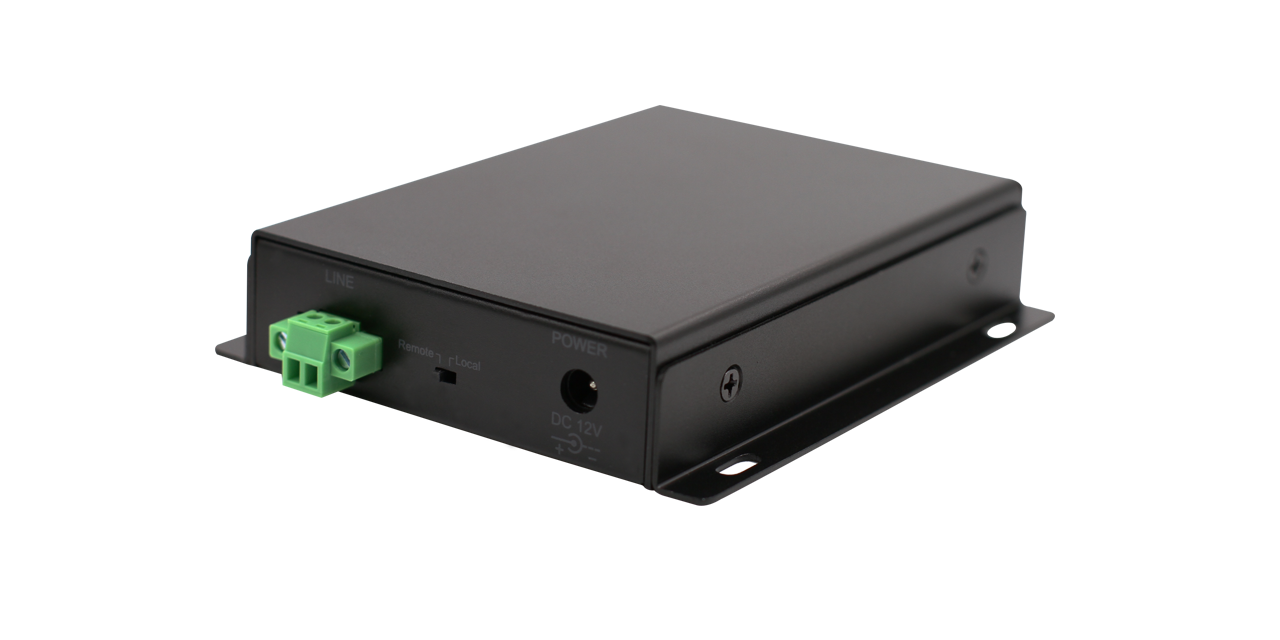

OT-L-DSL-N
VDSL Ethernet Extender
◆ IP over 2-wire up to 3,000m
◆ Max transmission rate can reach: Up 80Mbps/Down 80Mbps
◆ Support audio signal transmission over cables simultaneously
Overview
Dimension
Diagram
Parameter
Download
Overview

The OT-L-DSL-N is a high-performance VDSL2 Ethernet extender engineered for large-scale or bandwidth-intensive applications. Delivering 80 Mbps upstream and 80 Mbps downstream over distances up to 3000 meters, it makes full use of existing 2-wire infrastructure—such as telephone lines—while offering a wide voltage input range of 12–24 VDC. With a larger, more robust housing and enhanced throughput, it’s the ideal choice for heavy-duty surveillance, industrial automation, and multi-building networking projects where stability and speed are non-negotiable.



Key Features



1.Higher bandwidth — 80 Mbps upstream + 80 Mbps downstream for demanding data, video, and VoIP applications

2.Wide voltage input (12–24 VDC) for flexible deployment in diverse power environments

3.Large, rugged housing for improved heat dissipation and long-term durability

4.Extend Ethernet up to 3000 meters over 2-wire, twisted pair, or telephone lines

5.VDSL2 modulation (QAM + DMT) with FDM to separate voice and data traffic

6.DIP switch for quick local/remote configuration without software setup

7.Transparent transmission mode ensures full protocol compatibility

8.Multiple mounting options: desktop or wall-mount

9.Interfaces: Phoenix terminal (2P), RJ45 ports, DC 5mm power port

10.Standards compliant: IEEE802.3, IEEE802.3u, IEEE802.3ab



Applications



1.Heavy-Duty ADSL Upgrades — Modernize large-scale telephone infrastructures to IP with higher bandwidth requirements

2.High-Load Remote Surveillance — Extend high-resolution camera or access control signals over long distances with superior stability

3.Enterprise VoIP & IPTV — Deliver HD video and voice services to large facilities or multi-site networks without new cabling

4.Branch & Retail Networking — Connect high-traffic satellite offices, kiosks, or retail locations to main networks

5.Industrial Connectivity — Maintain fast, reliable Ethernet links up to 3000 m for data-intensive industrial and automation systems



Compare with other models


OT-L-DSL: Low power consumption type with smaller size

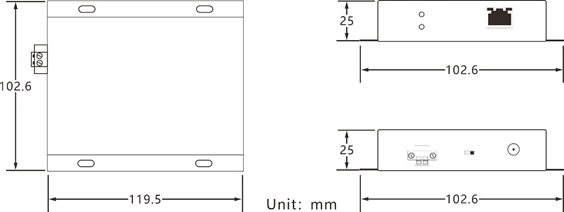

Dimension

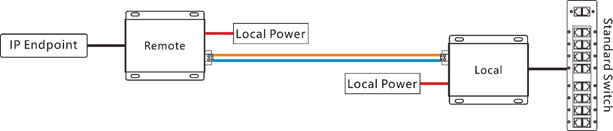

Diagram


Parameter

Categories

Description

Voltage Range

12~24VDC

Power Consumption

≤3.5W/PC

Standard

IEEE802.3/IEEE802.3u/IEEE802.3ab standard
  ITU-T G993.5 VDSL2 standard

Transmission Rate

Up Link 80Mbps

Down Link 80Mbps

Physical Interface

1 x RJ-45 10/100/1000Mbps auto-negotiation
  1 x 2P Terminal
  1 x DIP Switch
  1 x DC Power Input Terminal

Cable Connections

RJ-45 (Ethernet): Category 3~6 UTP
  2P (Line): 2 core copper wire

LED Indication

1 x Power LED
  1 x Link/Active indicator for Ethernet port
  1 x Link/Active indicator for Line port
  1 x Local/Remote Mode indicator LED

VDSL2 Line Code

Discrete Multitone (DMT) Modulation

VDSL2 Transmission Mode

Packet Transfer Mode (PTM)

Lightning Protection

4KV 10/700us, Common Mode Lightning: Level4

1KV 10/700us, Differential Mode Lightning: Level1

Executive Standard: IEC61000-4-5

Electrostatic Protection

1b Contact Discharge Level 2

1b Air Discharge Level 2

Executive Standard: IEC61000-4-2

Dimensions (L×W × H)

119.5 × 102.6 × 25mm

Material

Aluminum Alloy

Net Weight

190g/PC

Working Temperature

-40℃~60℃

Humidity

<95% (Non-condensation)
