OT-PLC101-N is a high-performance, standards-compliant solution designed to transmit standard Ethernet signals over two-wire cabling, twisted pairs, telephone lines, power cables, or data cables—no complicated rewiring required. This plug-and-play device is perfect for anyone wanting to save on costs, reduce cabling complexity, and maintain robust, stable communication across extended distances.
Key Features & Benefits
1. Versatile Long-Distance Connectivity
● Transmit network data over 600 meters.
● Compatible with various cable types, including two-wire, twisted pair, and phone lines.
● Ideal for multi-floor or sprawling network deployments.

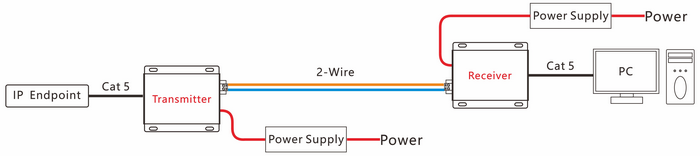

2. Point-to-Point or Multi-Point Connections
● Supports point-to-point or point-to-multipoint topologies.
● Utilize serial or daisy chain link methods to maximize efficiency and minimize cable usage.
● Eco-friendly and cost-saving approach to network infrastructure.
3. Easy Installation & Zero Configuration
● Plug-and-play design—just connect and go, with no extra debugging.
● Operates in a transparent transmission mode, ensuring seamless data flow.
● Standard desktop or wall-mount installation for versatile deployment.
4. High Reliability & Stable Communication
● Built on OFDM carrier modulation for excellent anti-interference capability.
● Complies with IEEE1901 and IEEE802.3 communication standards for stable performance.
● Guarantees smooth data transfer in even the toughest industrial or commercial environments.
5. Wide Voltage Power Supply & Low Power Consumption
● Accepts 12–24 VDC, allowing you to power the device from nearby sources.
● Low power draw reduces operating costs and makes it easier to share power with other equipment.
● Standard Phoenix terminals and RJ45 network ports offer straightforward connections.
● Security Overhauls: Perfect for CCTV and access control installations in large or multi-building campuses.
● Video Intercom: Transmit high-quality video and audio signals in residential or commercial buildings.
● Branch Office Networking: Easily connect small network points or remote kiosks without expensive new cabling.
● Industrial Automation: Extend control signals or monitoring systems across wide factory floors or facilities.
Category | Description | |
Power | Available Voltage Range | 12～24VDC |
Power Consumption | ≤3W/PC | |
Transmission/Rate | Standard Compliance | IEEE1901, IEEE802.3 |
Up Down Agreement | CSMA/CA | |
Bandwidth | Full duplex 100Mbps | |

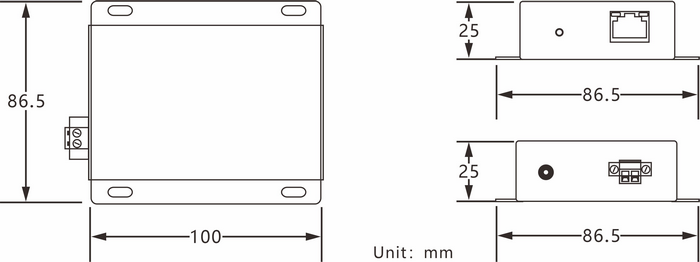

Physical Characteristic | Dimensions (L×W×H) | 100×86.5×25mm |
Material | PC Alloy | |
Net Weight | 100g/PC | |
Operating Environment | Working Temperature | -20℃～60℃ |
Working Humidity | ＜95% (Non-condensation) | |
