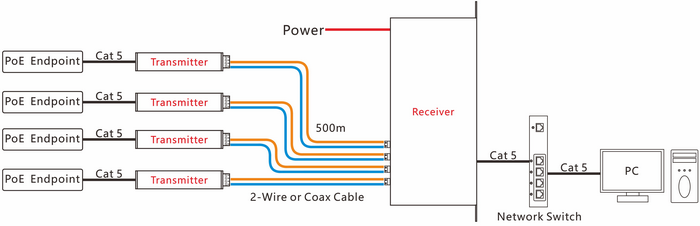

The OT-PLC302POC/PDU is a 4-channel PoE receiver hub designed to work with single-port PoE over 2-wire or coax transmitters. Engineered for rack-mounted deployments, it consolidates up to four concurrent PoE lines into one centralized chassis. Each line delivers up to 30W of PoE power, ensuring reliable performance for IP cameras, intercoms, access points, and other IEEE802.3af/at-compliant devices.
With support for 500m transmission distance and dual 2-wire/BNC interfaces, this receiver hub is ideal for large-scale, multi-device projects where both performance and clean installation matter.
Key Features
1. Multi-Line PoE Efficiency
●Supports up to 4 PoE channels simultaneously in one compact chassis.
●Simplifies complex wiring and reduces deployment costs in large installations.
2. Long-Distance Transmission
●Extends power + Ethernet up to 500 meters via existing coax or 2-wire cables.
●Built on OFDM frequency-division multiplexing, combining data and power reliably on the same line.
3. Centralized High-Power Output (160W)
●Accepts 100–240 VAC input directly—no external power adapter needed.
●Provides up to 40W per channel, totaling 160W for multi-device setups.
4. Intelligent Plug-and-Play Operation
●Transparent pass-through—no software, no configuration required.
●Built-in PoE management chip auto-detects device power needs and adjusts output accordingly.
5. Rack-Mount Professional Design

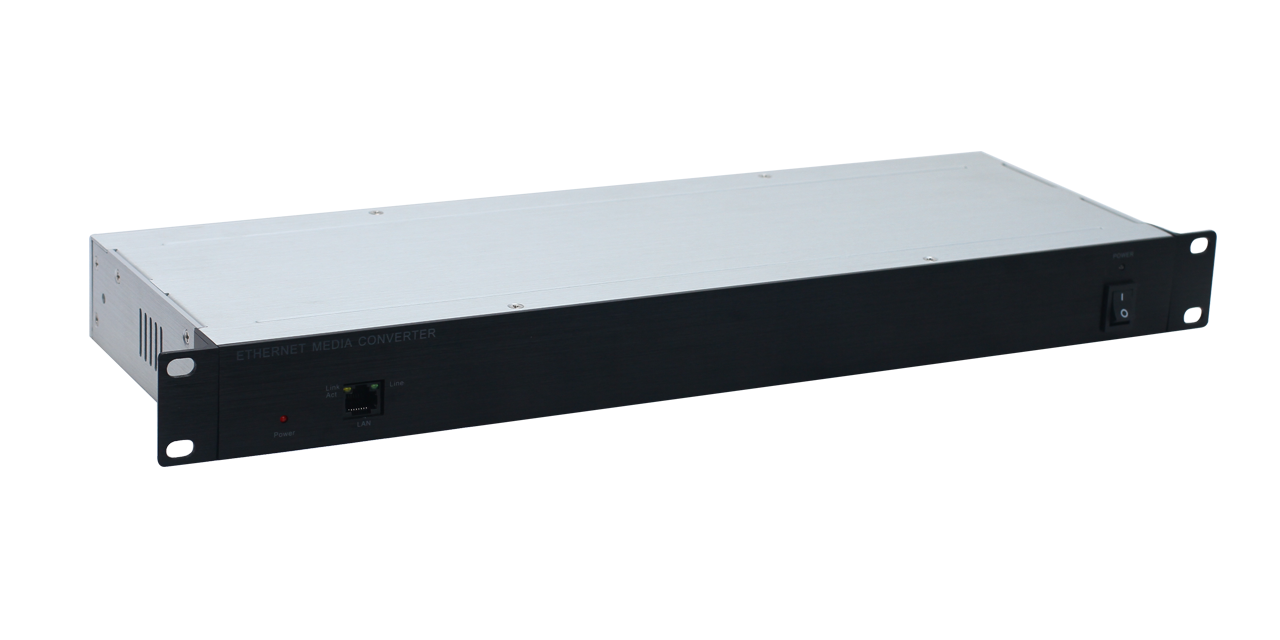

●Standard 19-inch rack-mount form factor—seamlessly integrates into server rooms or control cabinets.

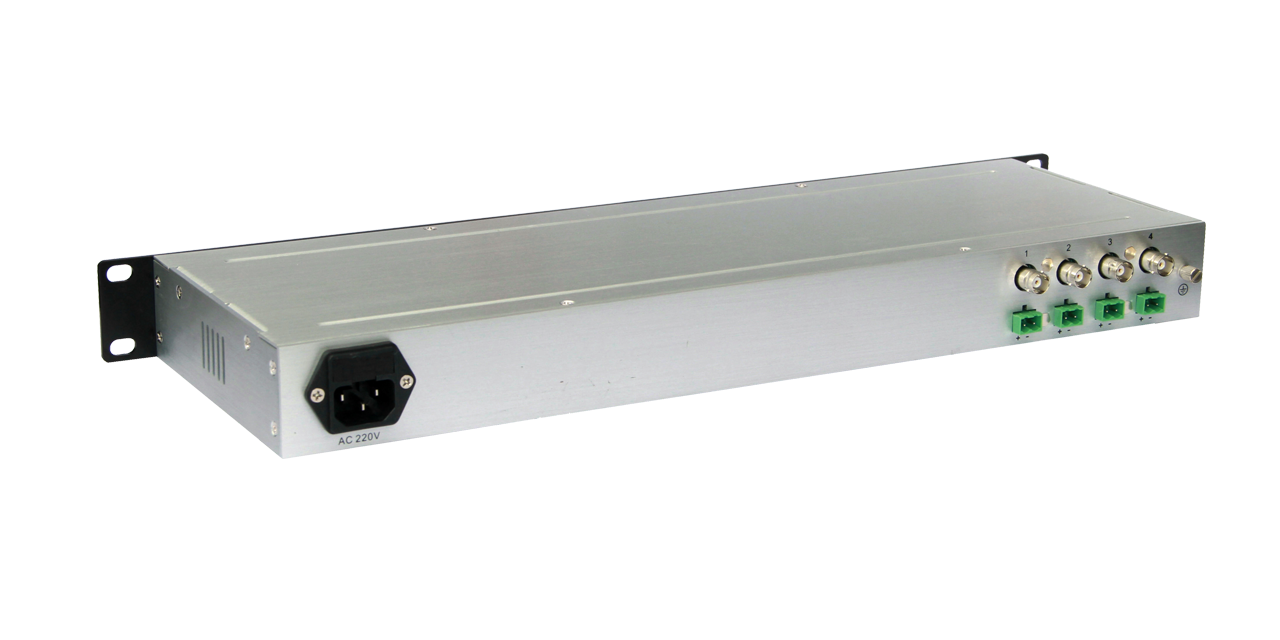

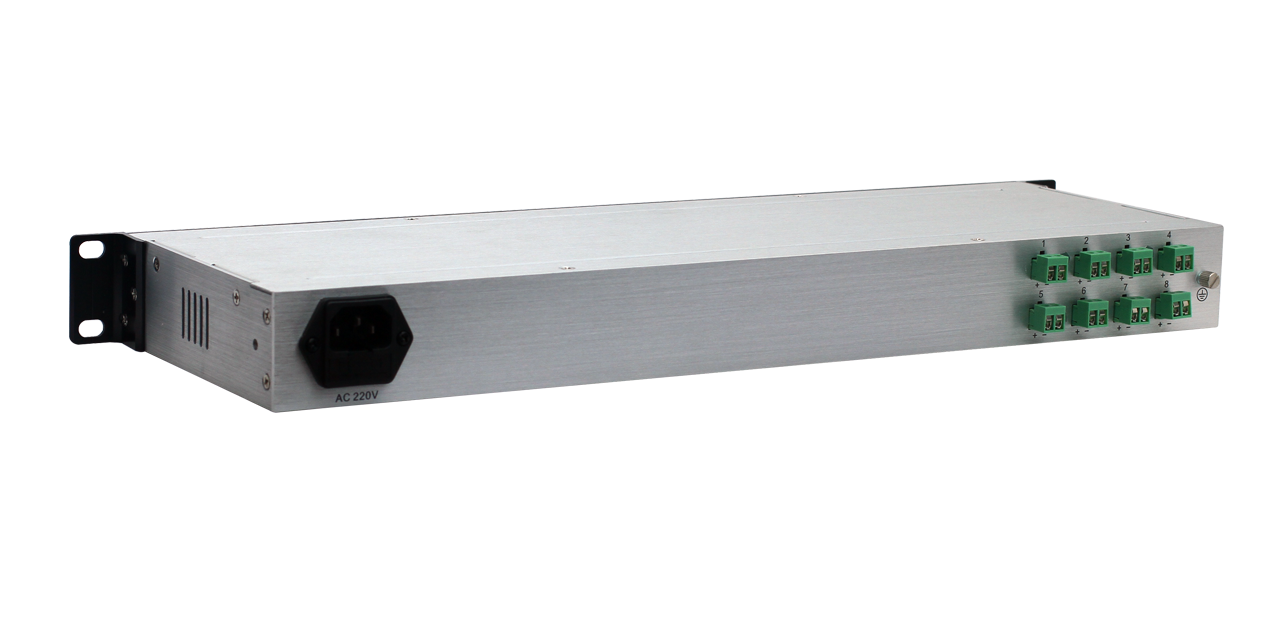

●Offers dual 2P Phoenix terminal + BNC ports for flexible cabling choices.
Ideal Applications
1.PoE Video Intercom & CCTV Systems: Power multiple remote door stations or surveillance cameras over long distances.
2.Wireless AP Deployment: Deliver PoE to multiple access points in expansive campuses, factories, or warehouses.
3.Remote Facility Connectivity: Extend network and power to outbuildings, parking areas, or perimeters without laying fiber.
4.Enterprise & Campus Networks: Streamline multi-device power distribution into one rack-mounted hub for clean, professional setups.
Category | Description | |
Power | Power Input | 100～240VAC |
Power Consumption | ≤15W/PC | |
Total PoE Output | 48VDC/160W | |
Transmission/Rate | Standard Compliance | IEEE 802.3, IEEE 802.3u |
Bandwidth | Full duplex 100Mbps | |

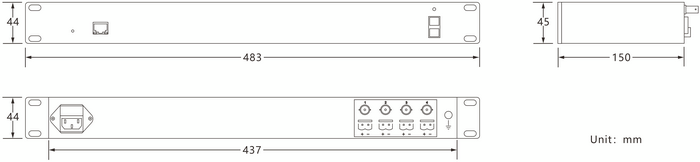

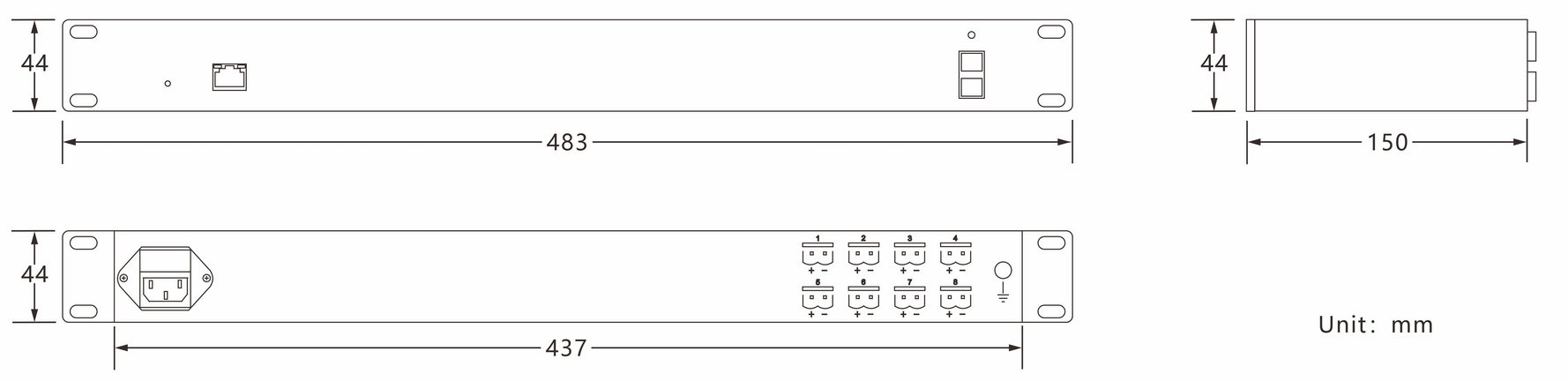

Physical Characteristic | Dimensions (L×W×H) | 483×44×150mm |
Material | Aluminum Alloy | |
Net Weight | 2.1KG/PC | |
Operating Environment | Working Temperature | -20℃～60℃ |
Working Humidity | ＜95% (Non-condensation) | |
