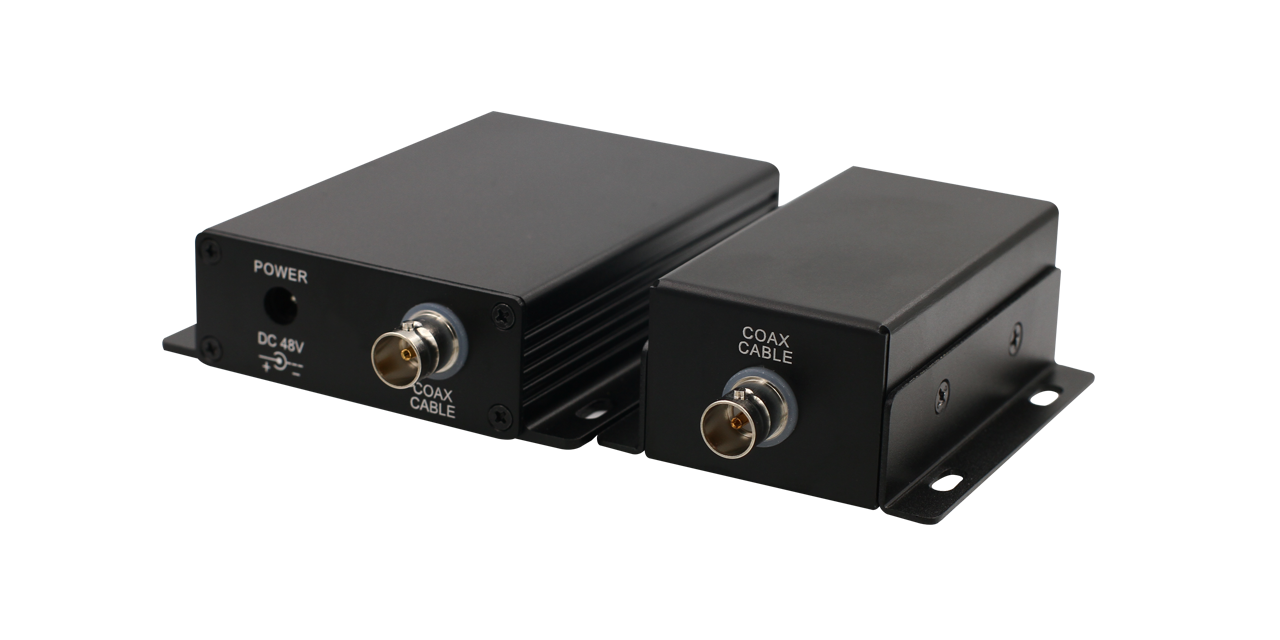

The OT-PLC101POE / OT-PLC101-DC is a cost-effective PoE over Coax Extender designed to deliver both Ethernet data and PoE power over existing coaxial cables. By reusing legacy coax with standard BNC connectors, it eliminates the need for expensive rewiring projects, making it an ideal choice for upgrading analog CCTV to modern IP systems or extending PoE to distant endpoints.
Key Features
1.PoE + Data Over Coax
●Transmits both power and Ethernet signals through a single coaxial cable, cutting installation costs and simplifying deployments.
●Perfect retrofit solution for sites with existing coax infrastructures.
2.Extended Transmission Range
●Overcomes the 100-meter Ethernet limit, delivering stable Power and data to remote devices.
●Ideal for long-distance applications such as multi-floor buildings, parking areas, and outdoor surveillance.
3.Effortless Plug-and-Play Setup
●Transparent transmission requires no additional settings
●Compatible with IP cameras, intercoms, and other PoE-powered devices.

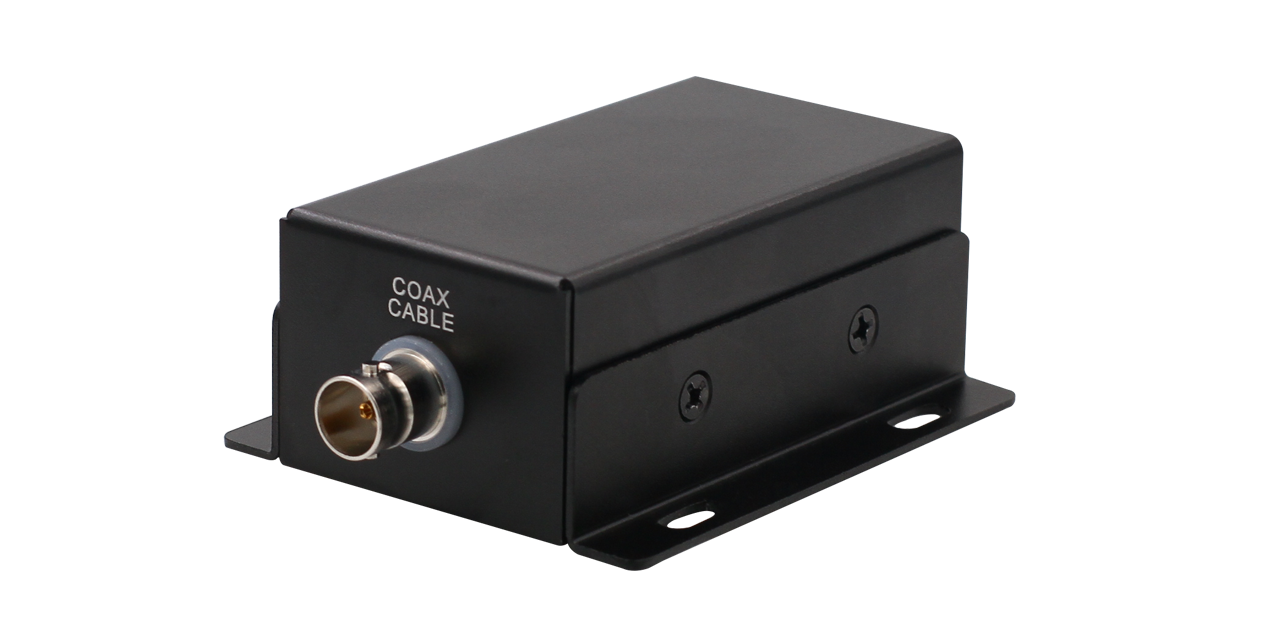

4.Compact Front-End Transmitter
●Ultra-small transmitter design fits neatly inside a standard 2-gang electrical box.
●Saves space at the camera or device side, making it ideal for tidy, concealed installations.
5.Flexible Power Options
●Supports 48–56 VDC input or can receive power from a PoE injector, switch, or NVR.
●Intelligent power management adjusts output to match connected device needs.
6.Compact & Flexible Mounting
●Supports desktop, wall, or optional DIN-rail installation.
●Space-saving design fits easily into cabinets, racks, or security housings.
7.Eco-Friendly Deployment
●Maximizes the value of existing coax infrastructure, reducing material waste.
●Helps meet modern sustainability and cost-efficiency goals.
Ideal Applications

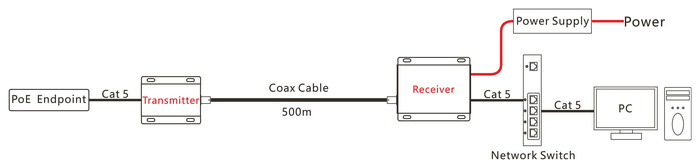

1.CCTV System Upgrades: Transition from analog cameras to PoE cameras while keeping coaxial cabling.
2.Remote Security Points: Extend PoE to distant checkpoints, gates, and perimeter cameras.
3.Campus & Multi-Building Networks: Cost-effectively link separate buildings using existing coax lines.
4.Hospitality & Retail: Repurpose coax TV infrastructure for IP-based signage, intercom, and security systems.
Compare with other models
OT-PLC302POE: High-performance 2-wire type which only supports 48-56VDC power input
Category | Description | |
Power Input (Receiver) | RJ45/PoE Input | Standard 48～56VDC; IEEE802.3af/at/bt |
DC Port Input | 48～56VDC | |
Power Consumption | ≤1.5W/PC | |

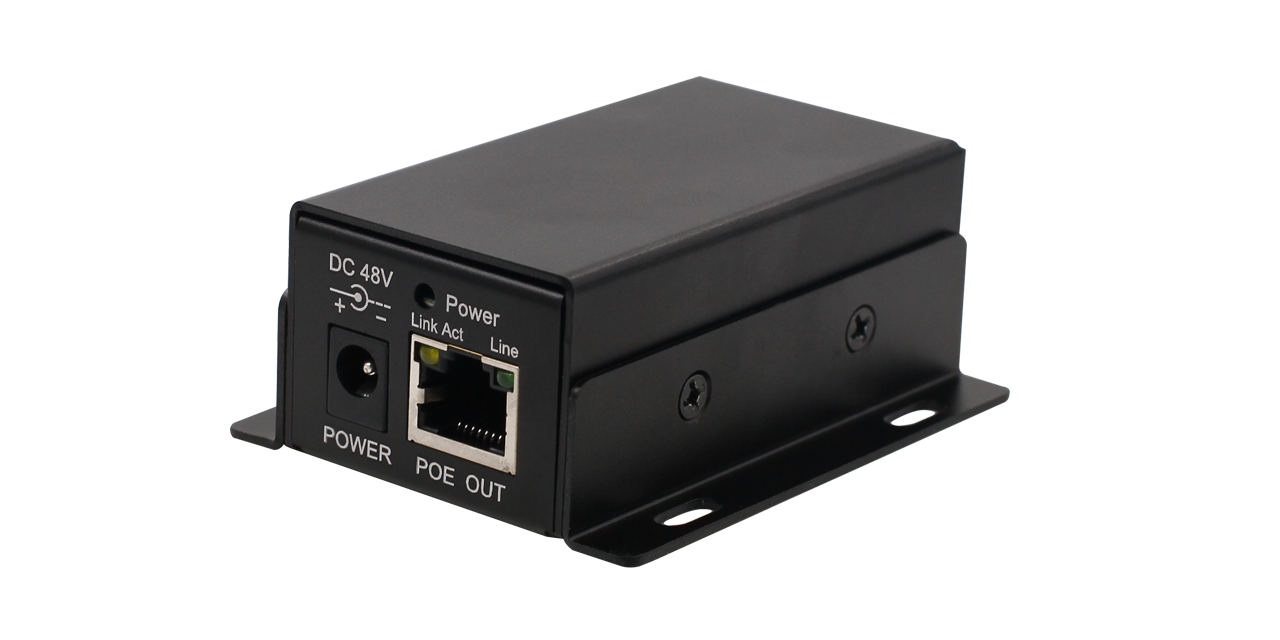

Power Output (Transmitter) | RJ45/PoE Output | Standard 48VDC; IEEE802.3af/at |
Power Consumption | ≤1.5W/PC | |
Ethernet | IEEE 802.3, IEEE802. 3u | Full duplex 100Mbps |

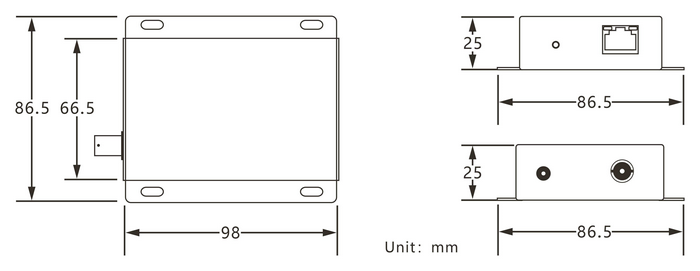

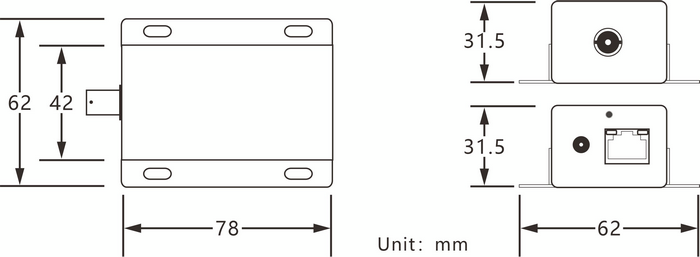

Physical Characteristic | Dimension (L×W×H) | Receiver: 98×86.5×25mm Transmitter: 78×62×31.5mm |
Material | Aluminum Alloy | |
Net Weight | Receiver: 160g Transmitter: 115g | |
Operating Environment | Working Temperature | -20℃～60℃ |
Working Humidity | ＜95% (Non-condensation) | |
