Industrial PoE over Coax Extender with M12 Connector | Ourten

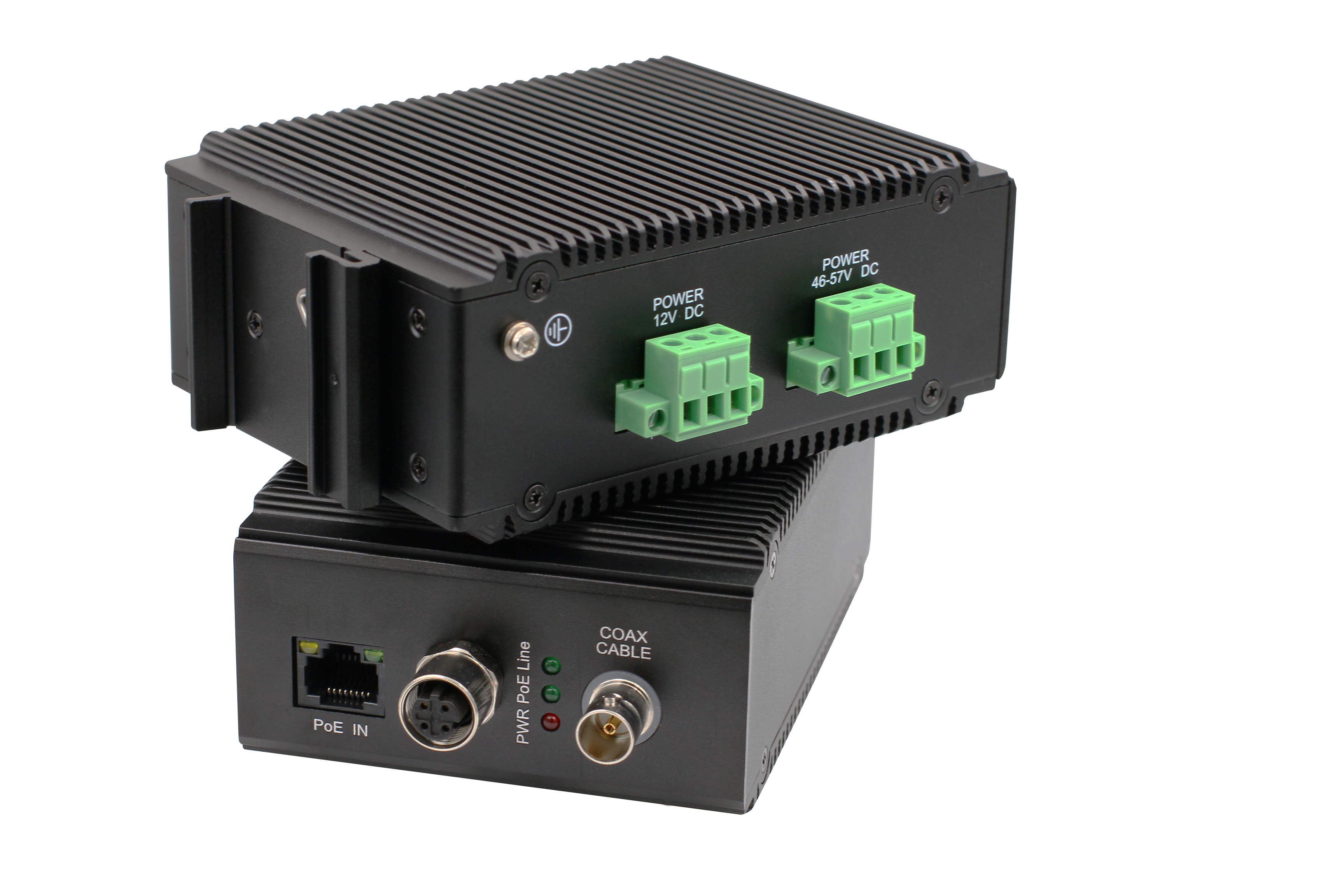

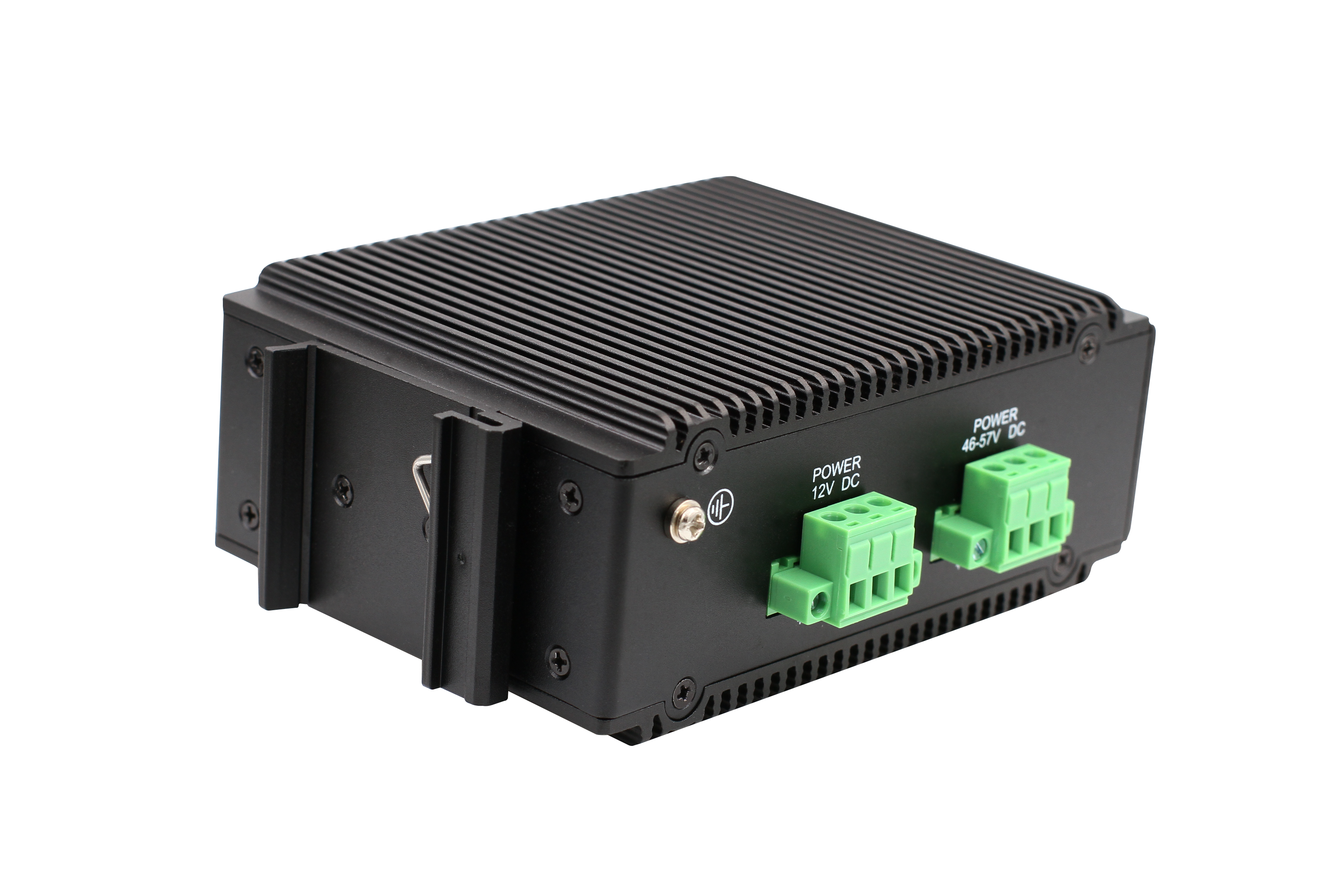

The OT-PLC601GI is a rugged, industrial-grade PoE extender designed to deliver both data and power over existing coaxial infrastructure. With its robust M12 connectors, extended temperature tolerance (-40°C to +85°C), and vibration-resistant design, it is ideal for mission-critical environments such as railway systems, transportation hubs, and other demanding industrial applications. Supporting both PoE and non-PoE modes, the OT-PLC601GI provides long-distance, interference-resistant connectivity while reducing the need for costly rewiring projects.

Key Features

1. Industrial-Grade Durability

●Built with vibration-proof M12 connectors, ensuring reliable connections in railways, vehicles, and environments with heavy mechanical stress.

●Wide operating temperature range of -40°C to +85°C, enabling stable performance in extreme climates.

2. Dual Power Input Options

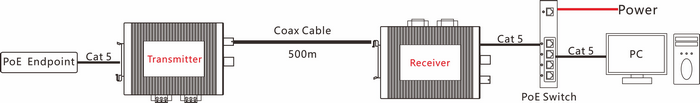

●PoE System Mode: Supports 48–56 VDC local power input or direct PoE power from a switch/injector, extending Ethernet + PoE up to 500 meters.

●Non-PoE System Mode: Dual-end 12 VDC power supply allows long-distance data transmission up to 1000 meters.

3. Strong Anti-Interference Performance

●Advanced OFDM carrier modulation with special protection design for noisy environments

●Meets IEEE1901 and IEEE802.3 standards, providing interoperability with standard PoE devices.

4. Flexible Deployment & Compatibility

●Transparent plug-and-play transmission—no complex configuration needed.

●Compact, robust enclosure for industrial cabinets, transportation systems, and outdoor enclosures.

5. Cost-Effective & Eco-Friendly

●Reuse existing coaxial cabling from old analog systems.

●Cuts installation costs, reduces cable waste, and supports sustainable retrofit projects.

Ideal Applications

1.Railway & Transportation Systems: Reliable IP/PoE connectivity for surveillance, intercoms, and monitoring equipment, even under vibration and extreme weather.

2.Industrial Automation: Extend Ethernet and power to controllers, PLCs, and sensors across large plants or distribution centers.

3.Smart Cities & Public Infrastructure: Upgrade legacy coaxial lines for IP-based surveillance and communication systems.

4.Remote Surveillance & Network Connection: Deliver high-quality video and data to distant checkpoints, tunnels, or platforms without new cabling.

Compare with other models

OT-PLC101POE/OT-PLC101POE-DC: Cost-effective coax type which supports either 48-56VDC or PoE power input

OT-PLC302POE/OT-PLC302-DC: High-performance 2-wire type which only supports 48-56VDC power input

OT-PLC302POE: High-performance 2-wire type which only supports 48-56VDC power input

OT-PLC602POE-2P: Advanced versatile 2-wire type which supports 48-56VDC power input and PoE or 12VDC power output
