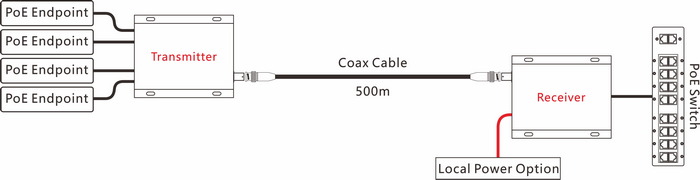

The OT-PLC604POE is a multi-channel PoE extender that powers up to four PoE-capable devices using a single coaxial cable. By combining Ethernet data and power via advanced OFDM frequency division multiplexing, this device reduces the need for multiple cable runs, cuts installation costs, and ensures reliable long-distance connectivity. Supporting up to 500 meters of PoE transmission, it is the ideal solution for projects requiring multiple PoE endpoints over legacy cabling.
Key Features
1. Four Devices, One Cable
●Powers and connects up to four IEEE802.3af/at devices—PoE cameras, intercoms, access control, or IoT endpoints—over a single cable.
●Eliminates multiple wiring runs, reducing clutter, deployment time, and overall project costs.
2. Long-Distance PoE Extension
●Extends both power and data up to 500 meters, far beyond the standard 100m Ethernet limitation.
●Ensures stable operation for large campuses, industrial facilities, or remote security points.
3. Transparent Plug-and-Play Operation
●Works seamlessly without additional configuration.
●Desktop, wall, or 35mm DIN-rail mounting options for flexible deployment in diverse environments.
4. OFDM Frequency Division Multiplexing
●Combines high-speed Ethernet and low-frequency power on the same cable.
●Maintains interference resistance in challenging environments with high EMI.
5. Intelligent PoE Power Management
●Built-in PoE control chip detects device requirements and adjusts output automatically.
●IEEE802.3af/at compliant, ensuring broad compatibility and safe power delivery.
Ideal Applications
1.Security & Surveillance Systems: Power and connect multiple PoE cameras through one coax line—ideal for building upgrades and remote perimeters.
2.Multi-Device Intercom Networks: Simplify wiring for video intercom panels or access control across residential complexes or offices.
3.Campus & Industrial Facilities: Extend power and data to several PoE endpoints without adding new network infrastructure.
4.Retail & Branch Deployments: Run POS terminals, digital signage, or PoE audio endpoints cost-effectively using existing two-wire or coax cabling.
Compare with other models
OT-PLC604-2P/POE: Special multi-channel type with 1 PoE out put port and 3 non-PoE port

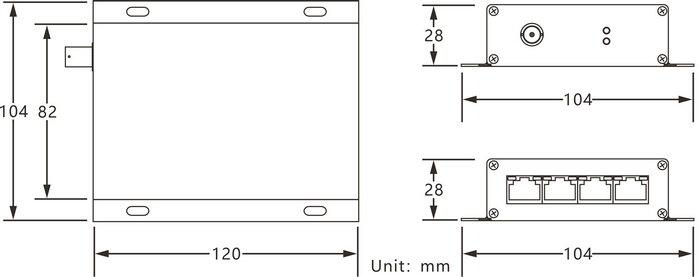

Transmitter

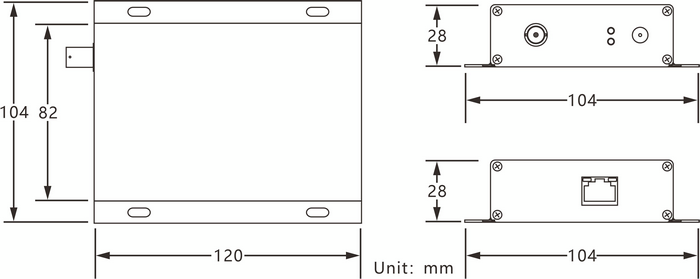

Receiver
Category | Description | |
Power Input (Receiver) | RJ45 / PoE Input | Standard 48～56VDC; IEEE802.3af/at/bt |
DC Input | 48～56VDC | |
Power Consumption | ≤3W / PC | |
Power Output (Transmitter) | Total PoE Output | Standard 48VDC; IEEE802.3af/at |
Power Consumption | ≤4W / PC | |
Transmission/Rate | Standard Compliance | IEEE1901, IEEE802.3 |
Bandwidth | Full duplex 100Mbps | |
Physical Characteristic | Dimension (L × W × H) | 120×104×28mm |
Material | Aluminum Alloy | |
Net Weight | Receiver: 235g/PC, Transmitter: 245g/PC | |
Operating Environment | Working Temperature | -20℃～60℃ |
Working Humidity | ＜95% (Non-condensation) | |
