OT-PLC302POE / OT-PLC302-DC is a high-performance 2-wire PoE extender that delivers both Ethernet and power over existing cabling—whether it’s twisted pair, telephone wire, or power lines. Supporting transmission distances of up to 500 meters, it helps reduce rewiring costs, speeds up deployments, and ensures reliable PoE connectivity for security, intercom, and automation projects.
Key Features
1.Extended PoE Reach up to 500m
●Transmit Ethernet and power far beyond the 100m Ethernet limit.
●Perfect for remote IP cameras, intercom stations, IP phones or access control points that require both power and data over a single line.
2.Reliable OFDM Modulation Technology
●Frequency Division Multiplexing (OFDM) ensures high-speed data and low-frequency power can coexist on one cable.
●Fully compliant with IEEE1901 and IEEE802.3af/at, guaranteeing stability and compatibility with most PoE devices.
3.Flexible Power Input Options
●Integrated PoE management chip adapts output to the connected device’s needs.
●Support either 48-56VDC or PoE power supply put in
4.Built-In Safety & Easy Integration
●Reverse polarity protection safeguards against wiring errors.
●Standard RJ45 + Phoenix connectors simplify installation in commercial and residential environments.
Ideal Applications
1.Video Intercom/VoIP Systems – Extend PoE over telephone lines or 2-wire cabling to support long-distance PoE intercom panels/phones.
2.PoE Surveillance Cameras – Deploy cameras across parking lots, perimeters, or multi-building sites without new power lines.
3.Compact Networking Setups – Mini form factor makes it ideal for junction boxes, cabinets, or wall enclosures.
4.Remote PoE Device Integration – Connect IoT sensors, access control readers, or monitoring terminals over long runs in commercial, residential, and light industrial facilities.
Compare with other models
OT-PLC302POE: High-performance 2-wire type which only supports 48-56VDC power input

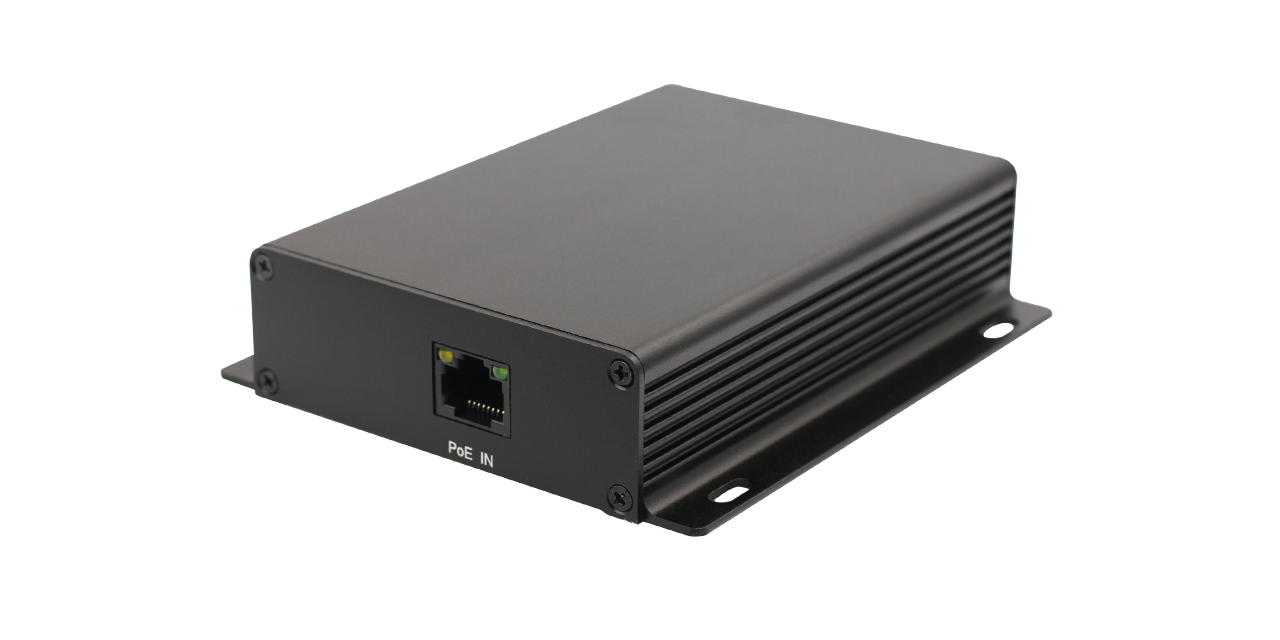

Receiver

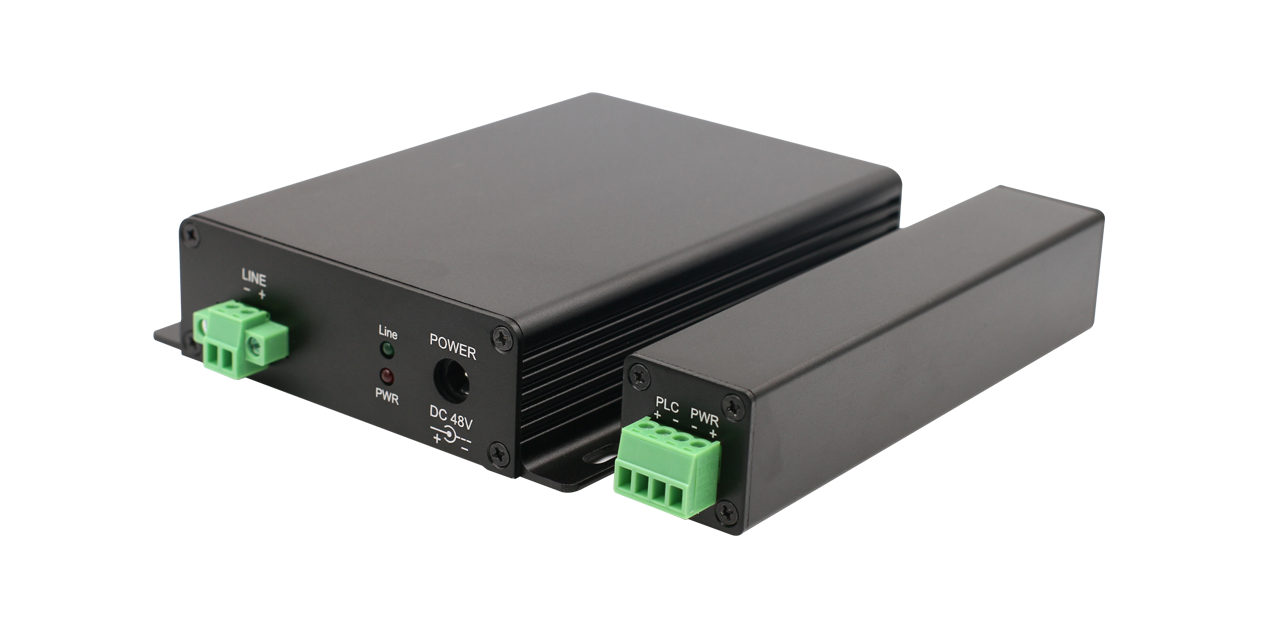

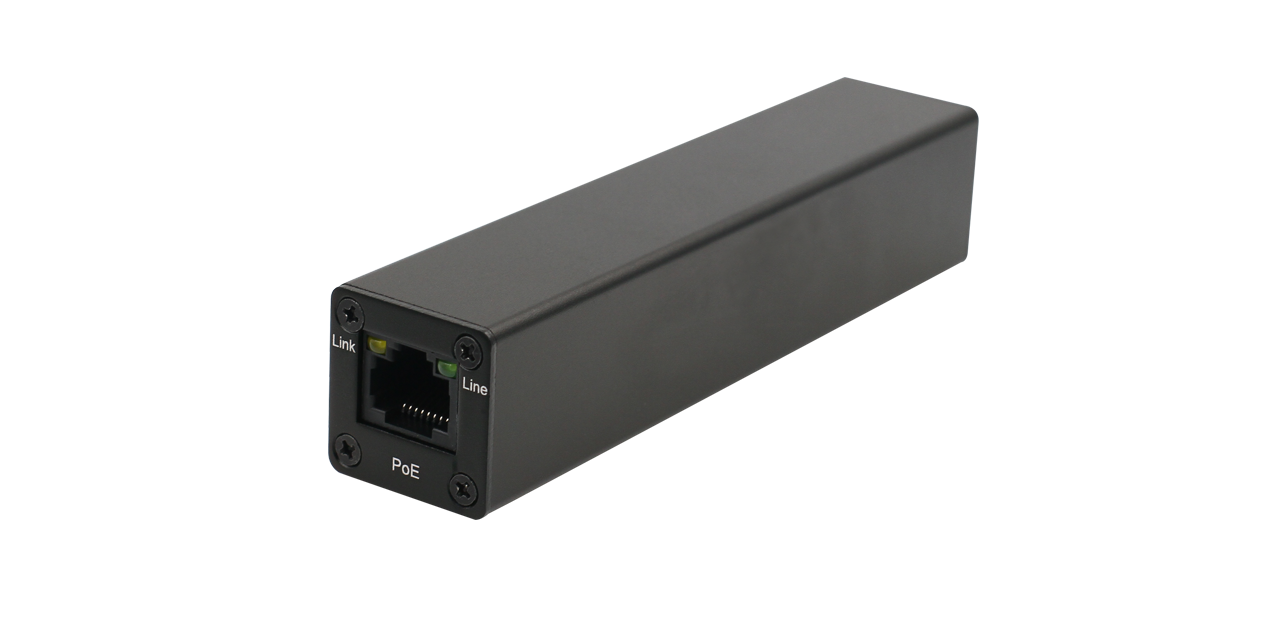

Transmitter

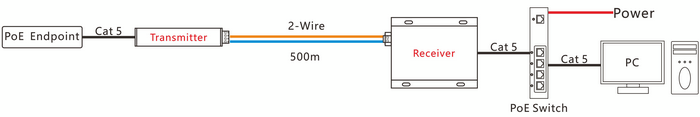

Point to Point

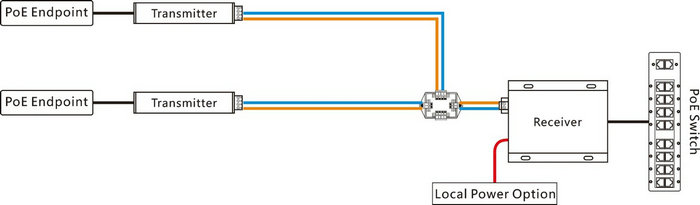

Point to Multi-point: Two Endpoint (Star)

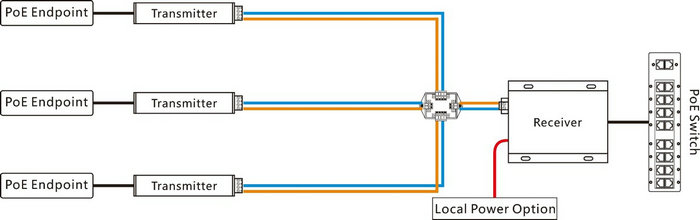

Point to Multi-point: Three Endpoint (Star)

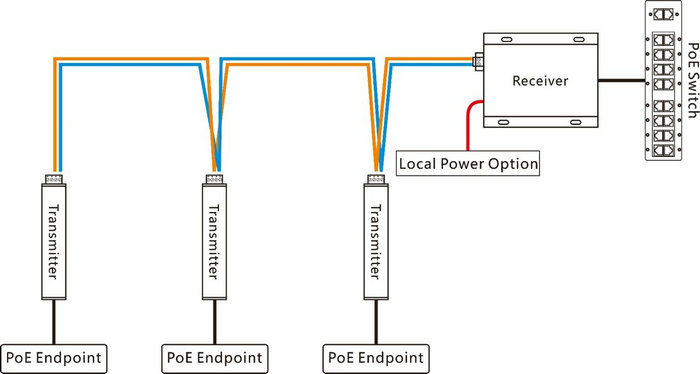

Point to Multi-point: Three Endpoint (Daisy Chain)

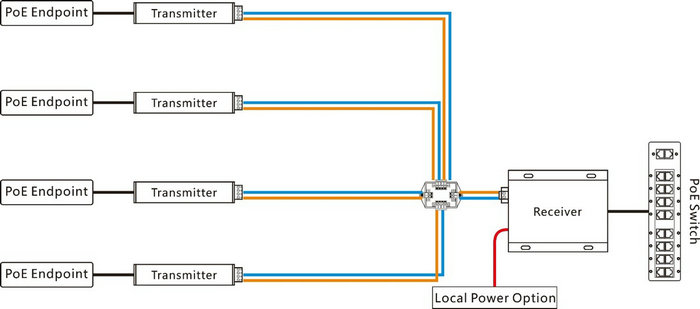

Point to Multi-point: Four Endpoint (Star)
Category | Description | |
Power Input (Receiver) | RJ45/PoE Input | Standard 48～56VDC; IEEE802.3af/at/bt |
DC Port Input | 48～56VDC | |
Power Consumption | ≤3W / PC | |
Power output (Transmitter) | RJ45/POE Output | Standard 48VDC; IEEE802.3af/at |
Power Consumption | ≤3W / PC | |
Ethernet | IEEE 802.3, IEEE802. 3u | Full duplex 100Mbps |

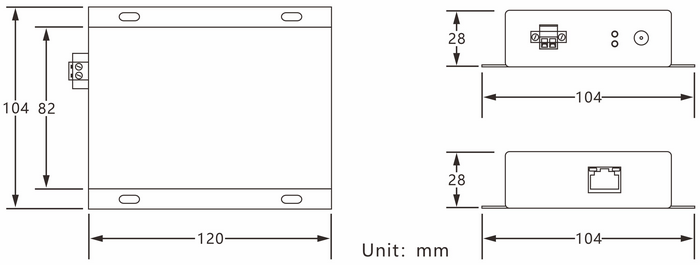

Physical Characteristic | Dimension (L × W × H) | Receiver: 120×104×28mm Transmitter: 123×26×26mm |
Material | Aluminum Alloy | |
Net Weight | Receiver: 225g Transmitter: 115g | |
Operating Environment | Working Temperature | -20℃～60℃ |
Working Humidity | ＜95% (Non-condensation) | |
