Protect Network Links Against Surges and Spikes
The SP-005DC10-RJ45/4 is a dedicated Ethernet surge protector designed to safeguard 10/100 Mbps network connections from lightning strikes and transient overvoltages. With 10kA surge discharge capacity and an independent ground terminal, it ensures reliable protection for IP cameras, intercoms, switches, and other critical devices where stable communication matters most.
·Reliable Protection for Data Transmission
Built for 100M Ethernet networks, this unit provides 4-pin line protection for data pairs while maintaining low insertion loss (<0.2 dB), ensuring clean and stable transmission. Using high-quality surge components, it offers a typical lifespan of up to five years, making it a cost-effective solution for small to medium installations.
·Compact, Flexible, and Easy to Deploy

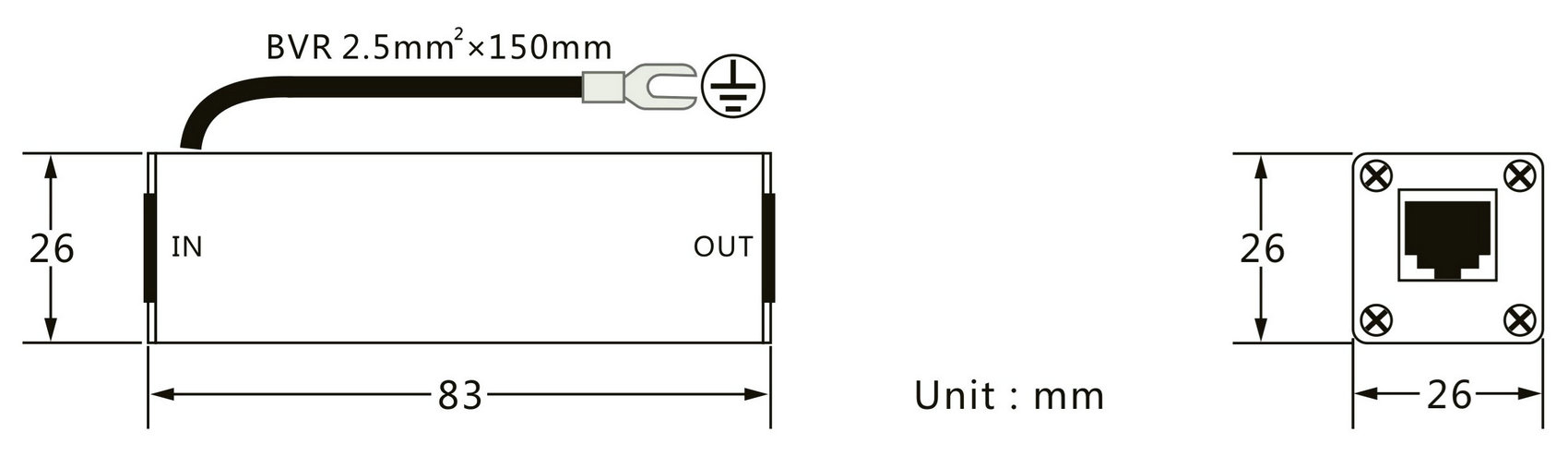

The SP-005DC10-RJ45/4 uses standard RJ45 connectors for plug-and-play integration with Cat5/Cat5e cabling. Its aluminum alloy housing improves heat dissipation and fire resistance, while the compact design allows flexible mounting on desktop, wall, or 35 mm DIN rail, making it suitable for control cabinets, racks, or direct field installation.
Applications
1.Security & Surveillance — Protect IP cameras, DVR/NVR uplinks, and monitoring terminals.
2.Telecommunications & Data Networks — Safeguard switches, servers, and routers in small cabinets.
3.Industrial Automation — Defend controllers, PLCs, and sensors relying on Ethernet links.
4.Transportation & Smart Infrastructure — Provide stable network protection for remote intercoms and kiosks.
Category | Description |
Working Voltage Un (V) | 6/12 |
Limiting Voltage Up (V) | 20 |
Normal Discharge Current In (kA) | 5 |
Maximum Discharge Current Imax (kA) | 10 |
Response Time (ns) | 1 |
Insert Loss (dB) | ≤0.2 |
Transmission Rate (bit/s) | 100M |
Terminal Type | RJ45 |
Net Weight (g) | 85/PC |
Working Temperature | -40℃～+80℃ |
Working Humidity | ＜95% Non-condensation |
