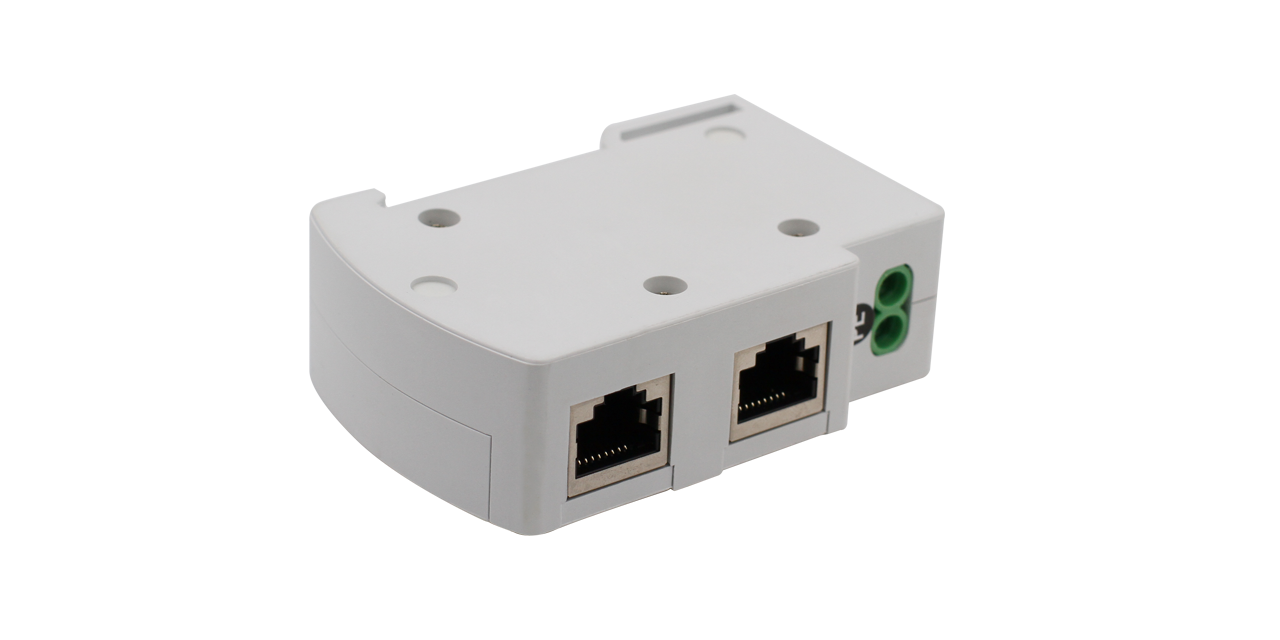

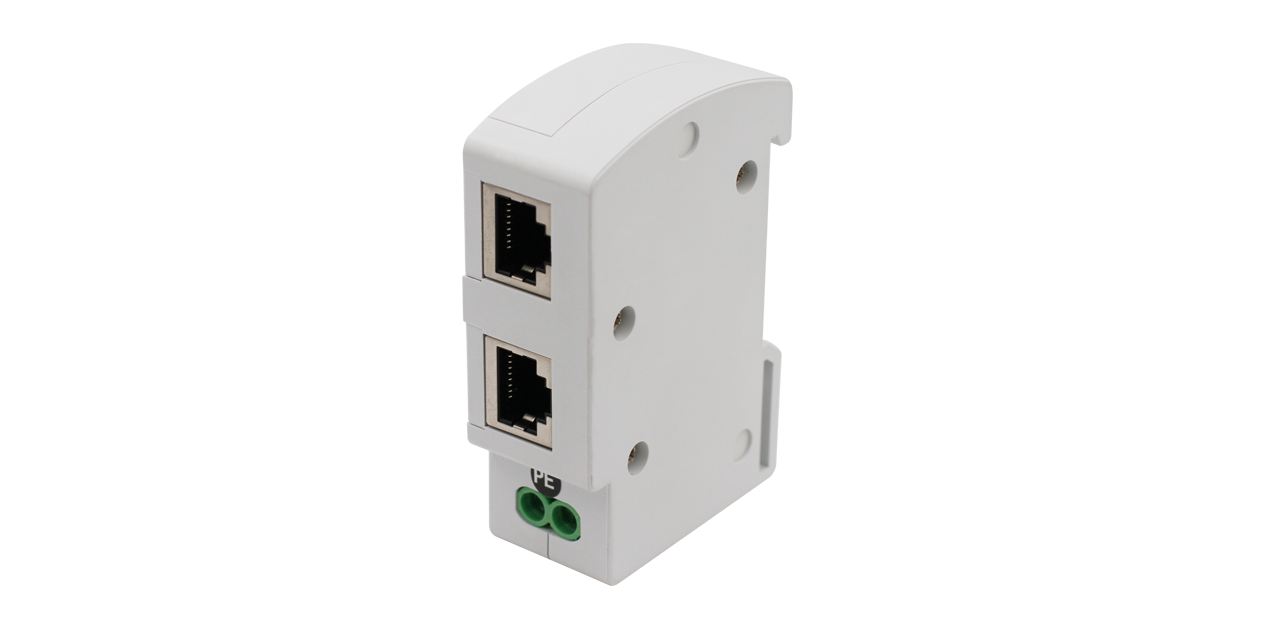

SP-005POE/1000 is Din-rail Gigabit PoE Surge Protector. It adopts a three-stage protection system to suppress overvoltage and surge currents in network cables. It features an independent grounding terminal to ensure stable communication while handling up to 10kA surge current, effectively protecting network equipment.

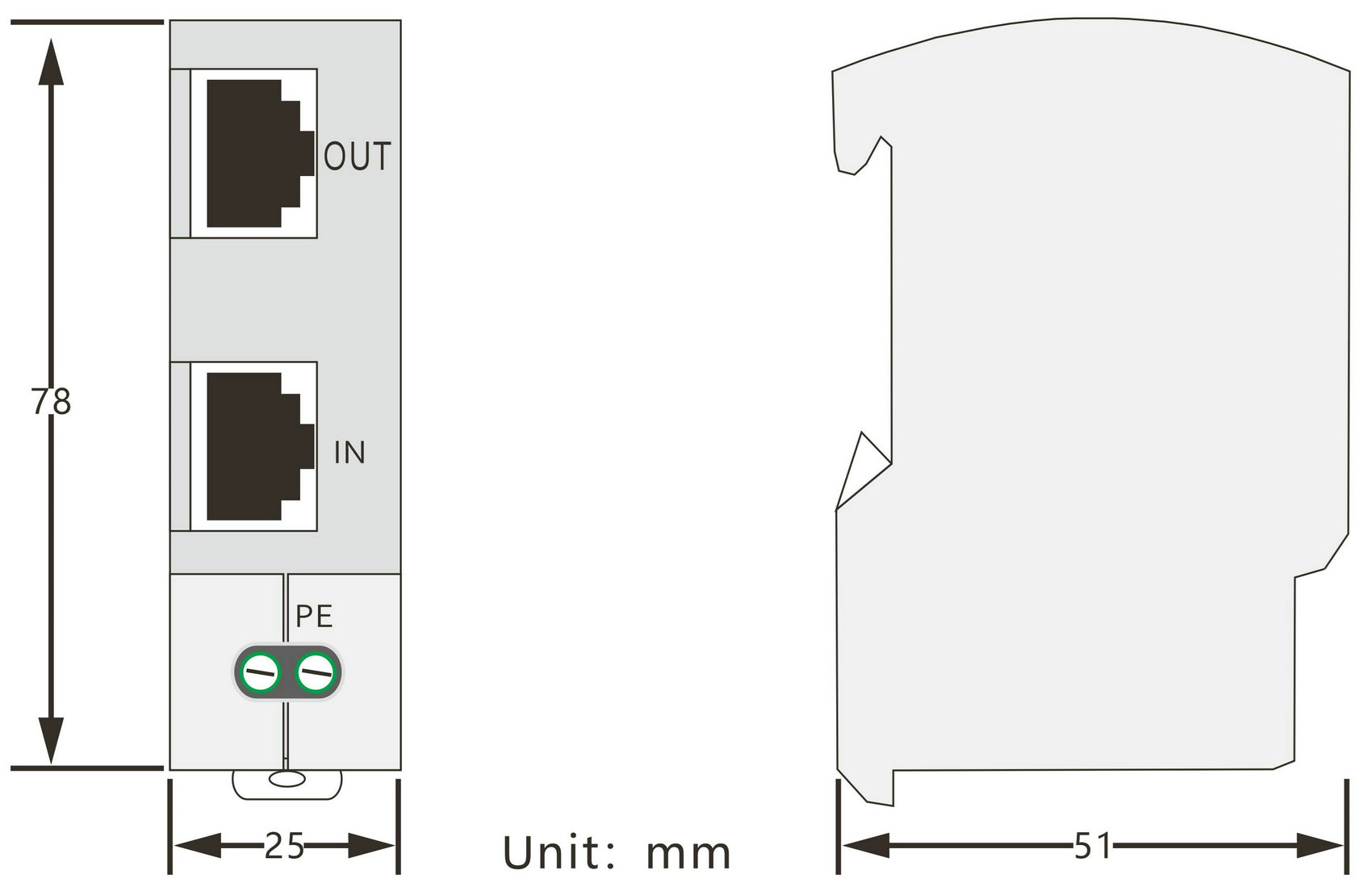

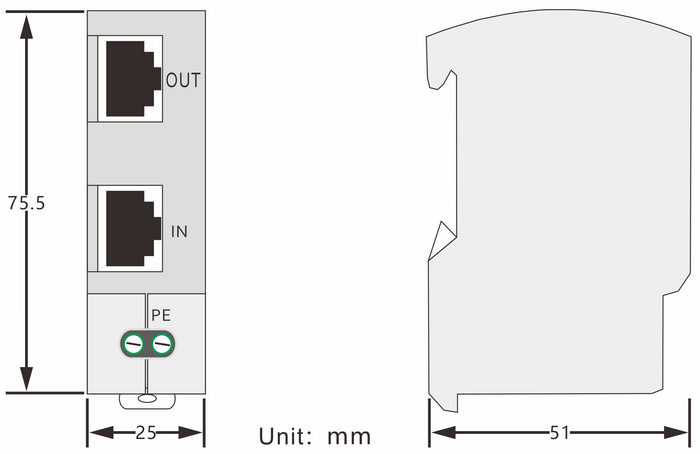

No external power supply is required. Install in series by connecting the protected device to the OUT port, the network line to the IN port, and the ground wire to a grounding busbar or point.
When a surge enters, excess voltage is absorbed and discharged through primary discharge, voltage limiting, and voltage clamping, ensuring only a safe voltage reaches network devices.
1. Standard RJ45 Ports – Supports Cat5, Cat5e, Cat6, and Cat7 connectors.
2. Full 8-Pin Protection – Ensures stable power and data transmission for PoE devices.
3. High-Quality Components – Premium surge protection elements extend lifespan to approximately five years.
4. Low Insertion Loss – Less than 0.2dB, maintaining high-quality network signal transmission.
5. Standard 35mm DIN Rail Mounting – Supports secure and convenient installation.
6. Flame-Retardant Plastic Housing – Provides excellent fire resistance for enhanced safety.
7. Compact Design – Ideal for installation in limited spaces.
Widely used in security surveillance, telecommunications, data centers, transportation networks, and industrial automation.
Compatible with 100/1000Mbps PoE devices, including PoE cameras, PoE intercom systems, PoE wireless access points, and other PoE-powered equipment.
Provides reliable protection against lightning and power surges, ensuring stable network operation.
Category | Description | |
Signal Type | Network | Power |
Interface Type | RJ45 | |
Working Voltage (Un) | 5V | 48V |
Max. Continuous Operating Voltage (Uc) | ≤6V | ≤60V |
Voltage protection level (Up @line-line) | 20V@ 3kV (1.2/50) | 60V@ 3kV (1.2/50) |
Voltage protection level (Up @line-GND/PE) | 60V@ 3kV (1.2/50) | 400V@ 3kV (1.2/50) |
Nominal Discharge Current (In @8/20μs) | 2.5kA | |
Max. Discharge Current (Imax @8/20μs) | 5kA | |
Surge Life at 0.5kA (8/20μs) | >2000 events | |
Bandwidth (3dB) per pair | 250MHz | |
Return Loss (100Ω) | -16dB | |
Lightning protection | 10kV@8/20μs, 10kV@10/700μs | |
Transmission Rate (Mbps) | 1000 | |
Response Time (ns) | ≤1 | ≤25 |
Insert Loss (dB) | ≤0.2 | |
Working Temperature | -40℃~+80℃ | |
Working Humidity | ＜95％ Non-condensation | |
Net Weight (g) | 72 | |
