6-Outlet Rack mount Surge Protector Power Strip

EN
CN RU
Home Surge Protector Power Rack-mount Surge Protection Power Strip
SP-CZ220AC10-PDU6
Rack-mount Surge Protection Power Strip
◆ Standard rack-mount design with 6 modular ports
◆ Suitable for protecting 220V single-phase power
◆ Indicators for power, grounding and operational status
Overview
Dimension
Diagram
Parameter
Download
Overview

Reliable Rack-Mount Surge Protection for Servers and Network Equipment



The SP-CZ220AC10-PDU6 is a 19-inch rack-mount surge protection power strip designed to safeguard critical IT, telecom, and AV equipment from damaging power surges and transient spikes. With six integrated outlets and built-in surge suppression, it combines convenience with reliable protection in one streamlined unit.



·Fast Response with Automatic Overload Protection



Using high-quality zinc oxide components, the SP-CZ220AC10-PDU6 reacts within nanoseconds to divert dangerous surges to ground. If surge current or leakage exceeds safe limits, the built-in breaker automatically disconnects, preventing damage to connected devices. A status indicator light provides instant confirmation of active protection.



·Built for Data Centers and Control Rooms



This rack-mount power strip is designed for standard 19-inch cabinets, making it easy to integrate into server racks and network enclosures. The metal housing ensures durability, efficient heat dissipation, and excellent fire resistance, while the six AC outlets with integrated air switch simplify power distribution and add an extra layer of safety.



Applications



1.Data Centers & Server Rooms – Protect servers, switches, and storage systems.



2.Telecom & Networking – Safeguard routers, gateways, and network distribution equipment.



3.AV & Broadcasting – Ensure stable power for audio-visual systems in studios or control rooms.



4.Industrial & Control Systems – Provide reliable surge protection for sensitive automation and monitoring equipment.

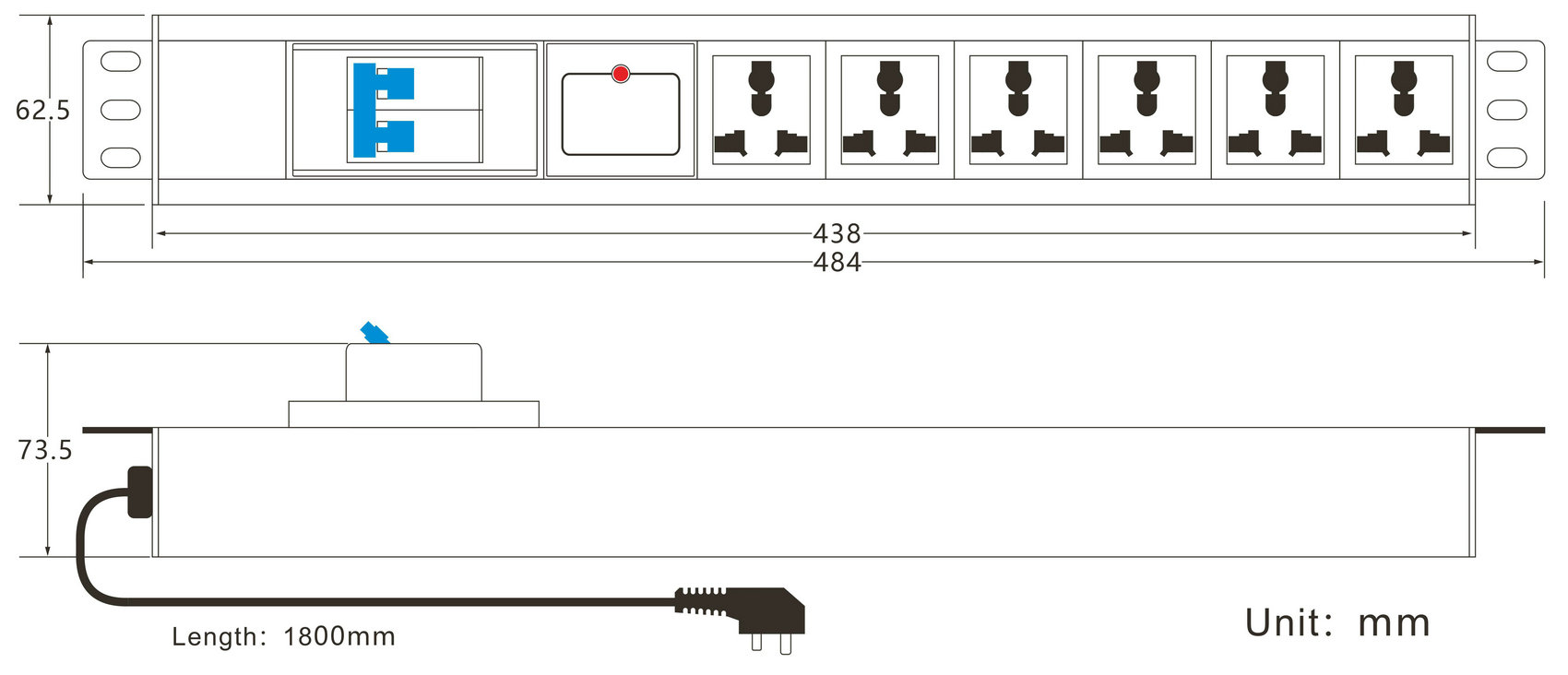

Dimension


Diagram


Parameter

Category

Description

Working Voltage Un (V)

220

Limiting Voltage Up (V)

385

Normal Discharge Current In (kA)

10

Maximum Discharge Current Imax (kA)

20

Response Time (ns)

<25

Leakage Current (μA)

≤20

Protection Level Up (kV)

1

Load Breaking Protection (A)

38

Weight (kg)

1.2

Working Temperature

-40℃~+80℃

Working Humidity

<95% Non-condensation
