Home Surge Protector Power Rack-mount Surge Protection Power Strip
SP-CZ220AC10-PDU8
Rack-mount Surge Protection Power Strip
◆ Standard rack-mount design with 8 modular ports
◆ Suitable for protecting 220V single-phase power
◆ Indicators for power, grounding and operational status
Overview
Dimension
Diagram
Parameter
Download
Overview

Rack-Mount Surge Protection for High-Density IT and Networking Equipment



The SP-CZ220AC10-PDU8 is an 8-outlet, 19-inch rack-mount surge protection power strip designed to safeguard multiple devices in data centers, server rooms, and professional AV environments. Built with high-quality zinc oxide components, it effectively suppresses dangerous surges and transient overvoltages, ensuring stable power delivery to sensitive equipment.



·Fast Surge Suppression with Overload Protection



Featuring ns-level surge discharge, the SP-CZ220AC10-PDU8 instantly diverts excess energy to ground to protect connected devices. An automatic overload protection mechanism disconnects when surge energy exceeds safe thresholds, preventing cascading failures. A status indicator light provides a quick visual check of the protector’s operational state.



·Optimized for Rack Integration



Designed for standard 19-inch rack cabinets, this power strip is ideal for high-density installations where multiple servers, switches, or AV devices need reliable protection. The rugged metal housing improves heat dissipation, provides fire resistance, and enhances long-term durability. With eight integrated AC outlets, it simplifies structured cabling and ensures efficient power distribution inside racks.



Applications



1.Data Centers & Server Rooms – Protect servers, storage, and switches.



2.Telecom Racks – Ensure stable power for communication equipment.



3.Professional AV Systems – Safeguard broadcasting and studio gear.



4.Industrial & Precision Equipment – Protect instruments, controllers, and lab devices.

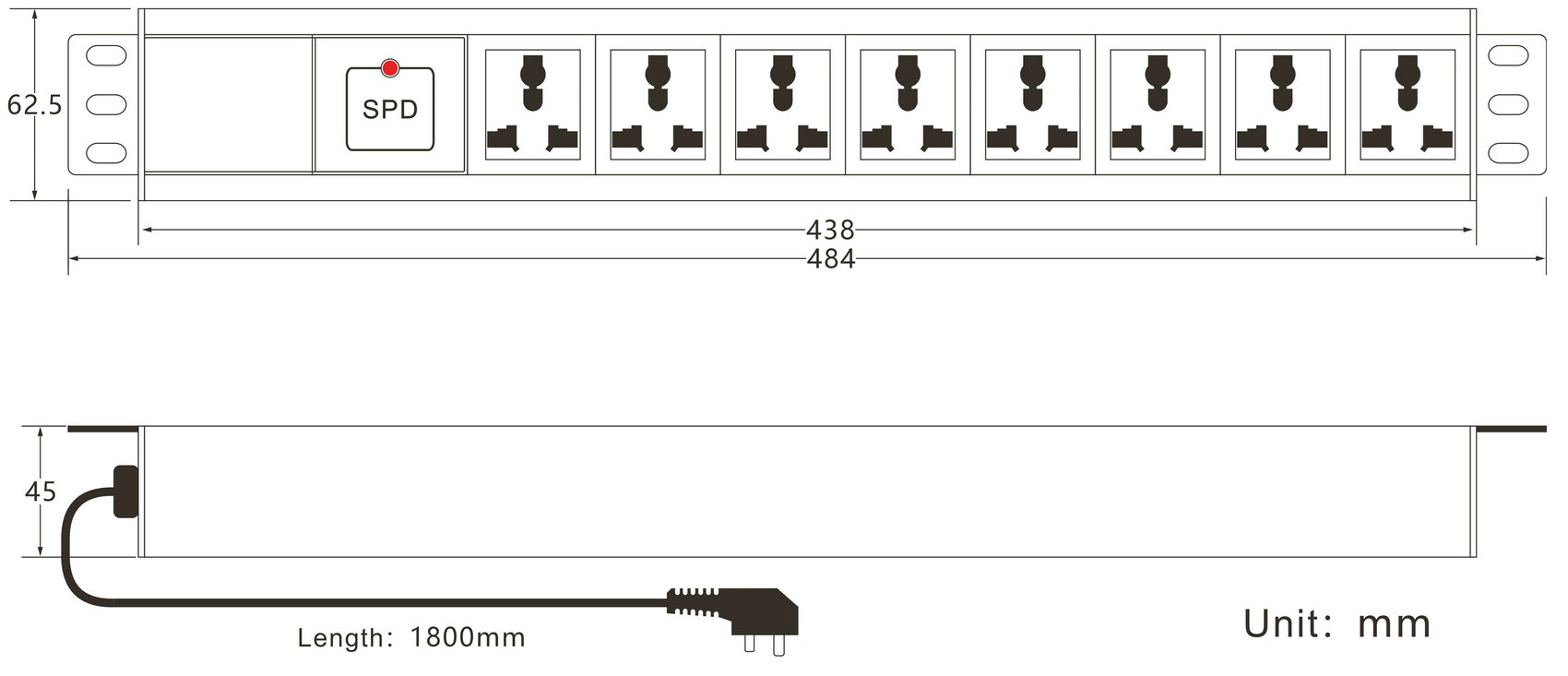

Dimension


Diagram


Parameter

Category

Description

Working Voltage Un (V)

220

Limiting Voltage Up (V)

385

Normal Discharge Current In (kA)

10

Maximum Discharge Current Imax (kA)

20

Response Time (ns)

<25

Leakage Current (μA)

≤20

Protection Level Up (kV)

1

Load Breaking Protection (A)

38

Weight (kg)

1.2

Working Temperature

-40℃~+80℃

Working Humidity

<95% Non-condensation
