SP-005EP
Ethernet / Power Surge Protector
◆ Compatible with 10/100 Base-T ports
◆ Protect 12-24V power line together
◆ High discharge capacity
Overview
Dimension
Diagram
Parameter
Download
Overview

Protect Both Network and Power Lines in One Device



The SP-005EP is a combined Ethernet and low-voltage power surge protector designed to defend critical equipment from lightning strikes and transient surges. Supporting 10/100 Mbps network communication and 12–24 VDC power lines, it offers comprehensive protection in a single compact unit—ideal for IP cameras, intercoms, and industrial control devices that rely on both data and auxiliary power.



·Reliable Defense for Sensitive Systems

Equipped with dedicated surge suppression for both network pairs and DC power inputs, the SP-005EP ensures continuous operation in harsh electrical environments. With a 10kA discharge capacity, low insertion loss (<0.2 dB), and independent grounding terminal, it maintains stable communication and safe power delivery even during severe surge events.



·Engineered for Versatile Deployment

This model combines a standard RJ45 interface for Ethernet with a 2-pin Phoenix terminal for secure power connections. Its aluminum alloy housing enhances heat dissipation and fire resistance, while the compact footprint supports desktop or cabinet installation where space is limited.



Applications



1.Security & Surveillance — Protect IP cameras and NVRs requiring both data and 12–24V DC power.



2.Access Control & Intercom Systems — Ensure reliable operation of door stations and controllers powered via low-voltage DC.



3.Telecommunications & Data Networks — Safeguard switches, servers, and auxiliary devices.



4.Industrial Automation — Protect controllers, sensors, and gateways running on Ethernet + DC power.

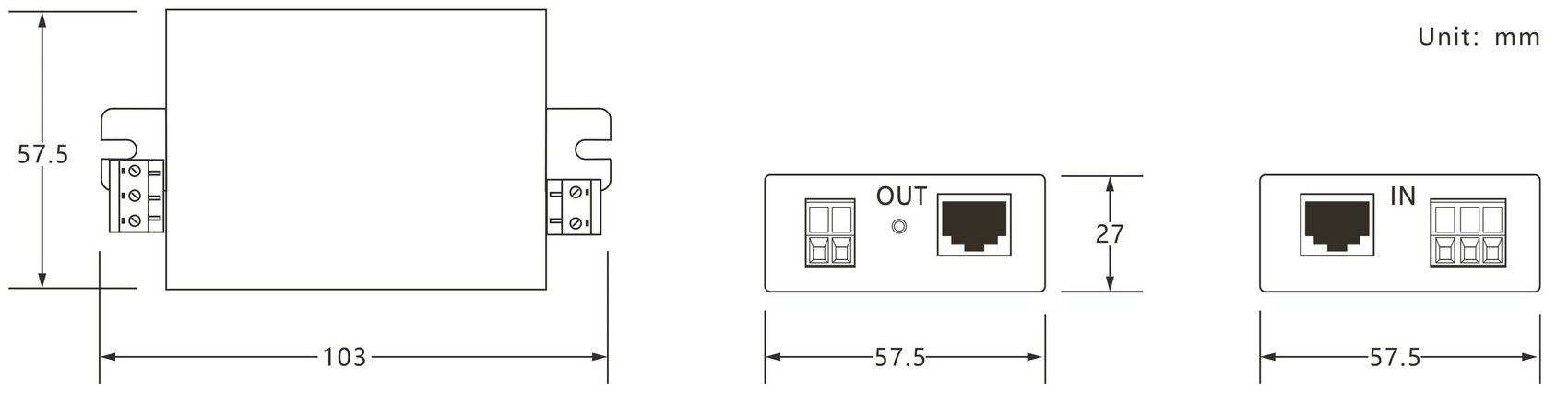

Dimension


Diagram


Parameter

Category

Description

Signal Type

Network

Power

Working Voltage Un (V)

5

12/24

Limiting Voltage Up (V)

20

60

Normal Discharge Current In (kA)

5

Maximum Discharge Current Imax (kA)

10

Response Time (ns)

1

<25

Insert Loss (dB)

≤0.05

Transmission Rate (bit/s)

100M

Terminal Type

RJ45/screw terminal

Net Weight (g)

105/PC

Working Temperature

-40℃~+80℃

Working Humidity

<95% Non-condensation
