Multi-Outlet Surge Protection for Home and Office Equipment

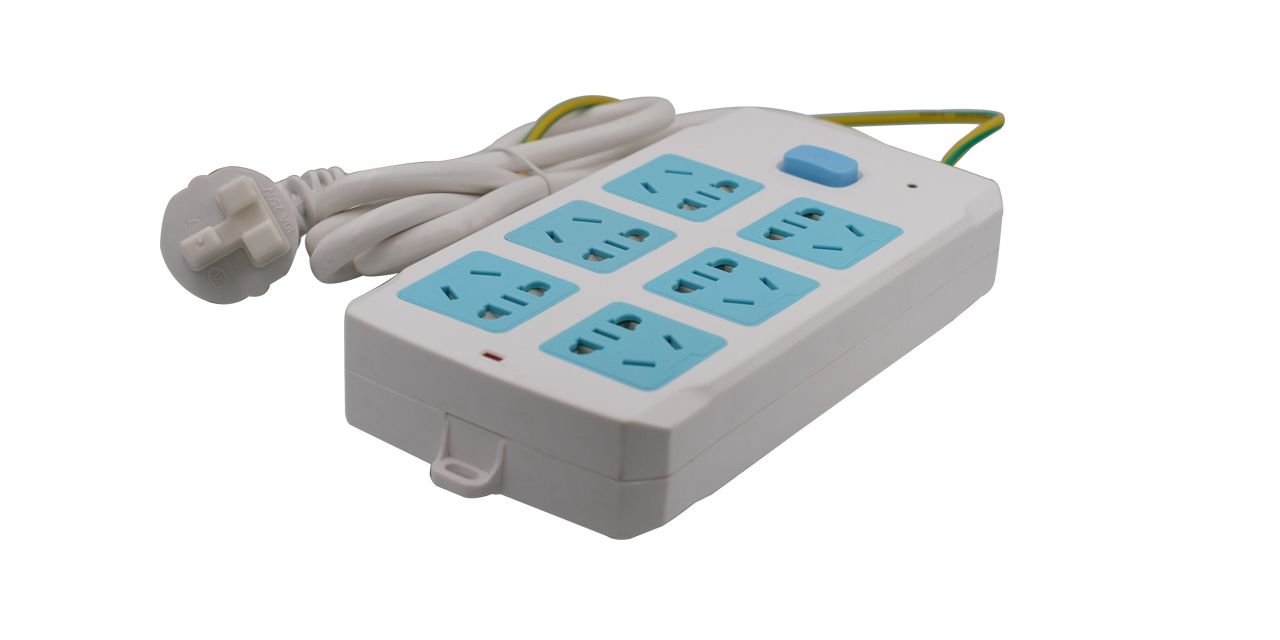

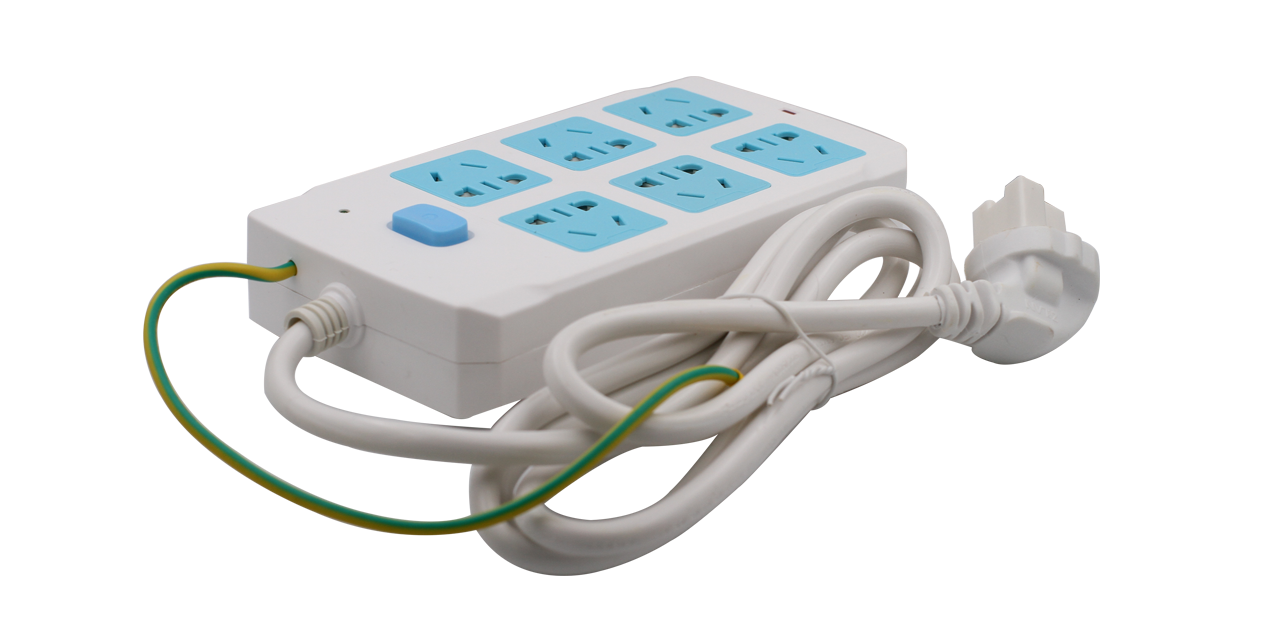

The SP-CZ220AC10-C1 provides reliable protection for up to six connected devices against damaging power surges and transient voltage spikes. Built with high-quality zinc oxide components, it ensures sensitive electronics remain safe and stable during unpredictable power events.
·Fast Response, Built-In Protection
Designed with ns-level discharge speed, the SP-CZ220AC10-C1 reacts instantly to divert excess energy to ground. If a surge exceeds safe limits, the automatic overload function disconnects the circuit to prevent further damage. A status indicator light makes it easy to confirm the unit’s operational state at a glance.
·Compact, Safe, and Easy to Use
With its desktop-friendly housing, this surge protector fits seamlessly into offices, homes, and professional environments. The flame-retardant enclosure ensures long-term safety, while the robust surge resistance allows it to withstand multiple surge impacts when properly grounded. Maintenance is straightforward—damaged units can be quickly identified and replaced.
Applications
1.Computers and servers.
2.Networking and communication equipment.
3.Fax machines and office devices.
4.High-end audio and video systems.
5.Precision instruments and network switches.
Category | Description |
Working Voltage Un (V) | 220 |
Limiting Voltage Up (V) | 385 |
Normal Discharge Current In (kA) | 5 |
Maximum Discharge Current Imax (kA) | 10 |
Response Time (ns) | ＜25 |
Leakage Current (μA) | ≤20 |
Protection Level Up (V) | 700 |
Rated Power (kW) | 3.5 |
Weight (g) | 415 |
Working Temperature | -40℃～+80℃ |
Working Humidity | ＜95% Non-condensation |
